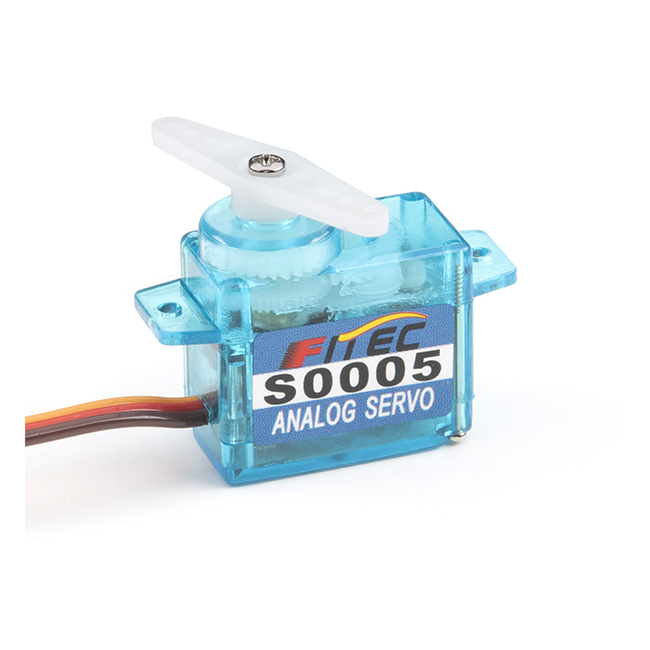

Analog Servo - FeeTech S0005 (Sub-Micro Size)

Servos can be found everywhere from heavy machinery, to power steering in vehicles, to robotics and a wide variety of electronics. So there are typically a plethora of options to choose frob but when you need a 120° rotation analog servo motor, this is the one! This servo is able to take in 6V and deliver 13.90 oz-in. of maximum torque at 0.12 sec/60°

A standard 3-pin power and control cable is attached. Check out the 'Includes' tab for all the hardware that is included.

Includes:

• 1x S0005 120° Rotation Servo
• 1x Single Arm Horn
• 1x Round Disc Horn
• 1x Four Point Horn
• 2x Double Arm Horn
• 2x 3x5mm Phillips Screw

Features:

• Voltage: 4.8-6.0 Volts
• Torque: 11.10/13.90 oz-in. (4.8/6.0V)
• Speed: 0.14/0.12 sec/60° (4.8/6.0V)
• Rotation: 120°
• Motor Type: Brushed
• Gear Type: Plastic
• Pulse Width: 900-2100 µs
• Wire Length: 170mm
• Weight: 5.0g

Documents:

• Datasheet
