Carbide 3D - Shapeoko 4 CNC Router XXL

As low as £2,634.70 £2,195.58

UK WAREHOUSE 3 in stock
SKU
CAR-SHAPEOKO4XXL
Carbide 3D
Customize Carbide 3D - Shapeoko 4 CNC Router XXL
Shapeoko 4 CNC XXL - No Router   + £2,634.70 £2,195.58

* Required Fields

Your Customization
Carbide 3D - Shapeoko 4 CNC Router XXL
Carbide 3D - Shapeoko 4 CNC Router XXL

In stock

£2,634.70 £2,195.58

Summary

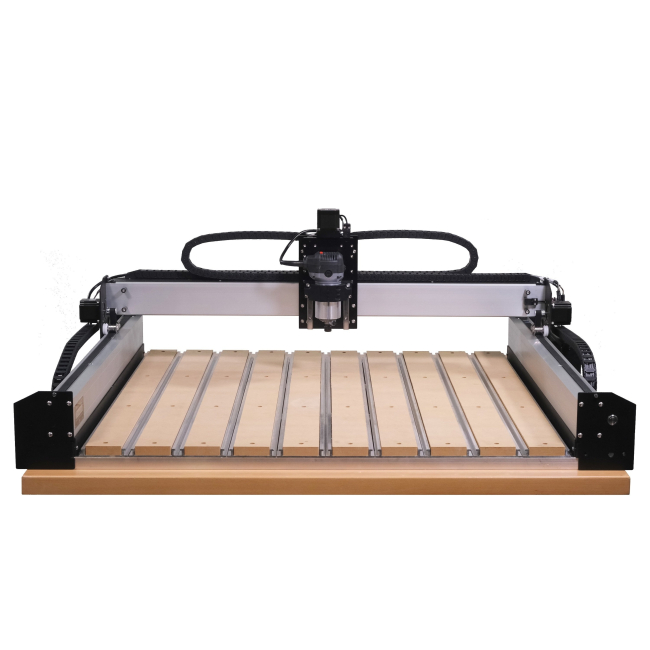

    Introducing Shapeoko 4



    Shapeoko 4 is the replacement for the Shapeoko 3. Carbide 3D took everything they could from the Shapeoko Pro and applied it to the new Shapeoko 4.

    Hybrid Table

    Shapeoko 4 is built on Carbide3D Hybrid Table, which acts as the rigid base of the machine and a very flexible workholding system.

    Structurally, it’s made from a grid of custom-made extrusions that create a solid platform to build a CNC router on.

    The Hybrid Table has a series of t-slots to hold clamps, vises, or the material being cut directly.

    Between the t-slots, there are sacrificial MDF slats for your material to rest on.

    Workholding Included

    Shapeoko 4 comes with a dirty dozen of Teez-Nutz and six fiber-reinforced nylon clamps that won’t break your cutter if they get hit.


    When paired with the Hybrid Table, this is everything you need to hold down many common materials but we have plenty of other options if you find that you want something more specialized.

    Dust Collection Included

    Shapeoko includes Sweepy V2 dust boot to help keep your Shapeoko CNC router, and your shop, as clean as possible. It works with range of hose diameters for maximum compatibility with your vacuum:


  • 2.5” Direct hose
  • 2.25” Shop vacuum
  • 36mm Festool/Fein
  • Sweepy V2 also includes an additional brush-free base if you want maximum visibility at the expense of a little dust.

    Carbide Create 2D CAD/CAM

    Carbide Create is Carbide3D 2D CAD/CAM program that lets you design your projects and then define the toolpaths to actually cut them out. You can start with a blank page, load a DXF or SVG file, or load an image to trace automatically.


    The best part is that Carbide Create is totally free so you can try it out today.

    Carbide Motion

    Carbide Motion loads gcode, the industry standard for CNC routers, and makes the machine follow that motion.


    Carbide3D follows common gcode standards so you can generate your projects in Carbide Create or any other CAD/CAM program that uses normal gcode. Carbide3D doesn’t lock you into their CAD/CAM software.

    CutRocket- Projects Ready-to-Cut

    If you’d like to start with complete projects that others have shared, you should check CutRocket CNC project sharing site.

    Unlike other project sharing sites, CutRocket is only for CNC projects so you won’t find a bunch of stuff made for 3D printers.

    Download projects and start cutting right away.

    (We’re sure that you’ll be uploading your own projects in no time.)


    Warranty

    One-year warranty

    Shapeoko comes with a one-year warranty against defects. If you have any problems, Carbide3D will take care of them.


    See their warranty here.

    30 Days, "Mistakes are On Us"

    Carbide3D wants you to jump into your new Shapeoko CNC router without any fear of damaging anything so their warranty includes the following benefit:

    For the first 30 days that you own your Shapeoko, they will replace any Carbide 3D-branded item that’s damaged, even if it’s your fault.


    Details can be found here.


    Upgrades from the Shapeoko 3 include:

    • New, more rigid v-wheel design
    • 15mm belts
    • Inductive homing switches
    • New electronics
    • Integrated t-slot Hybrid Table
    • Fully-supported Y extrusions
    • Leadscrew-driven Z-axis
    • New, more rigid 65mm router mount
    • Sweepy 65mm V2 dust boot

    You'll be able to push the Shapeoko 4 harder for a big increase in productivity.

    NOTE: Photos above are from a pre-production machine.  The final product will be cosmetically different.


    What's in the box?

    What's included:

    • Shapeoko 4
    • T-slot Hybrid Table
    • Carbide Motion control software
    • Carbide Create 2D CAD/CAM software
    • Assembly tools
    • #201 .25" Flat Endmill
    • Qty 12, M6 T-Nuts
    • Sweepy 65mm V2

    What you need to provide:

    Trim router: We recommend a compatible Makita model.

    Computer: Mac (OSX 10.14 or higher) or PC (Windows 8.1 or 10, Intel or AMD)

    Specifications (XXL):

    • Cutting Area: 33" x 33" x 4" / 83.8cm x 83.8cm x 10.16cm (XYZ)
    • Footprint: 50" x 41" x 19" / 127cm x 104.14cm x 48.26cm (XYZ)
    • Weight: 165 lbs / 74.85 Kg

    Spindles:

    Shapeoko Pro uses a trim router as a spindle.  The original Carbide 3D router is only 110V so we opted of not supplying it. We recommend the Makita RT0700C or any router with a a 65mm diameter.
