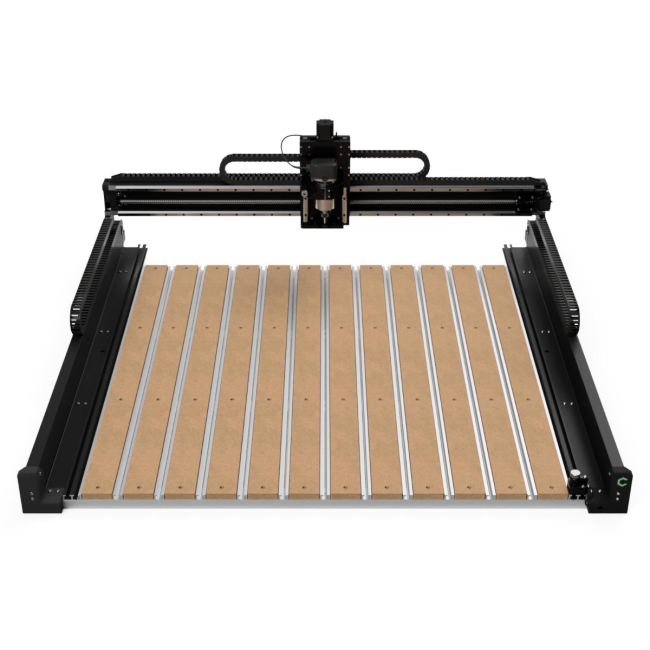

Carbide3D - Shapeoko 5 Pro CNC Machine

Wood

Cut any type of wood, from the softest pine to the hardest white oak. You pick whatever is right for your project, and Shapeoko 5 Pro will cut it.

Plastic

Cut any common plastic, including: Acrylic, ABS, HDPE, Delrin, PE, PP, PEEK

Aluminum

Use a quality carbide cutter, and you'll be able to cut aluminum as easily as wood (just a little slower).

Brass

Brass is an excellent material for many projects. Jewelry, nameplates, branding irons, inlays, and small handles and catches can all be made directly on your Shapeoko 5 Pro to make your projects truly unique.

Wax, Foam, and More

Harder foams, waxes, and polyurethane tooling board all cut easily.

Stone and Ceramic

Ceramics and stone don't cut well, but you can still use them in your projects.

Cut Profiles

Simple 2D profiles are the most basic type of cut, and they're easy with Shapeoko. Our Carbide Create CAD/CAM software makes it easy to pick a vector and optionally add tabs to your parts to keep everything connected.

Cut Pockets

Pockets are tough without a CNC machine. Normally you'd have to freehand them with your router or make a template for the router to follow. Shapeoko and Carbide Create make it easy to pick a depth and a contour to follow.

Inlays

Inlays add a ton of detail to your products, but they're tough to do by hand. With the accuracy of Shapeoko 5 Pro, you'll be able to make inlays that fit perfectly and with detail that cannot be made by hand.

V-Carving

V-carving takes advantage of the 3-axis motion of Shapeoko 5 Pro to quickly create engraved features that give your projects real depth.

Engraving

Use our engraving bits to mark tiny details into plastic and metal parts.

Drag Engraving

Drag engraving, using McEtcher, is a great way to add detail to stone, ceramics, hard plastic, and anodized aluminum.

Fine Details

Even though it's a large machine, Shapeoko 5 Pro is capable of cutting parts with great detail, from tiny pockets to fine engraving.

3D Carving

When you're ready for more advanced projects, you can upgrade to Carbide Create Pro software to generate full 3D projects, either of your own designs or using files from a third party.

Workholding

Shapeoko 5 Pro is based on our Hybrid Table that includes T-slot workholding and a set of clamps to go with it.

Workholding is one of the most challenging parts of CNC, and the Hybrid Table gives you more options than any other system.

Fit Full-Sized Sheets

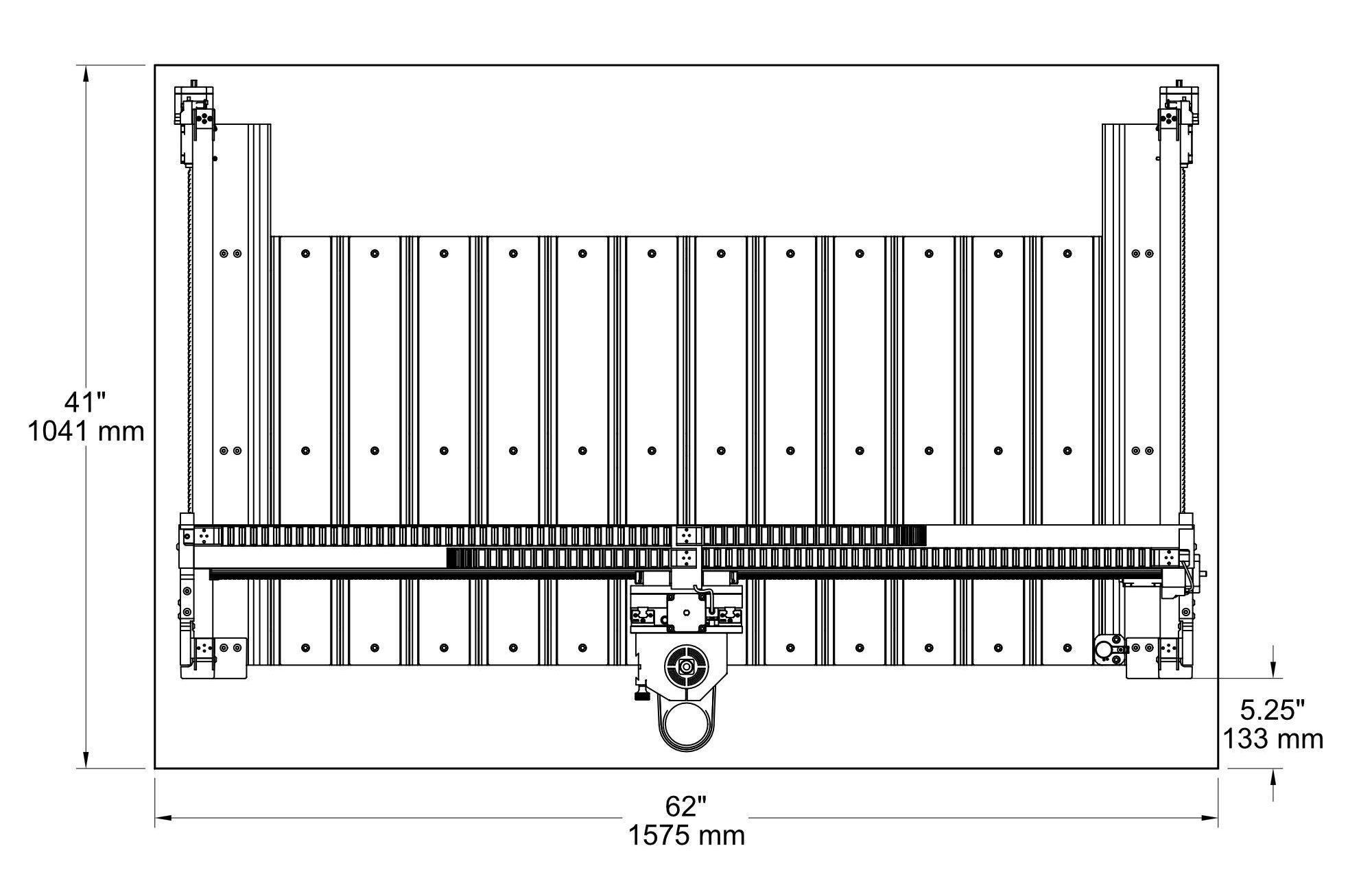

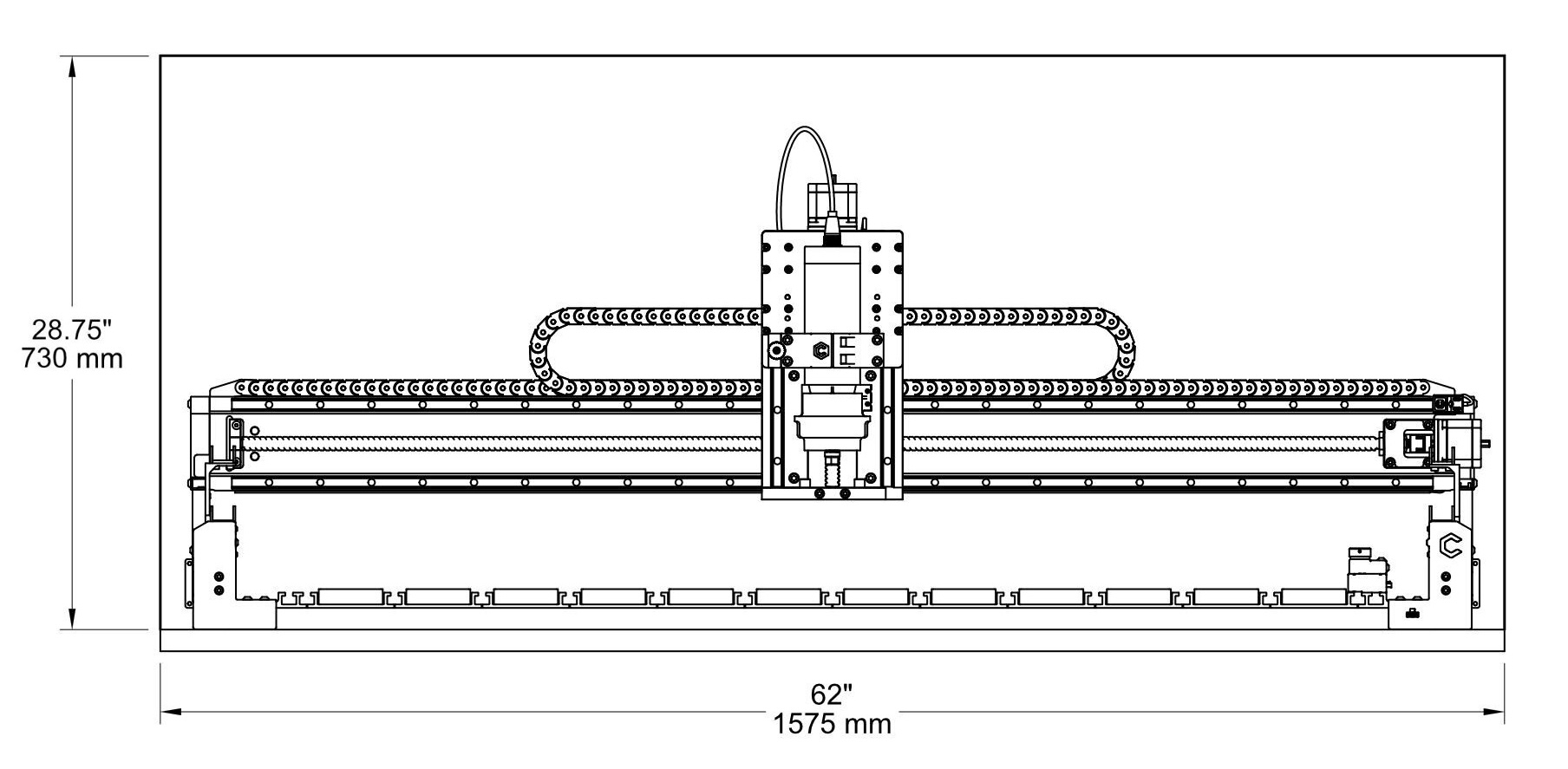

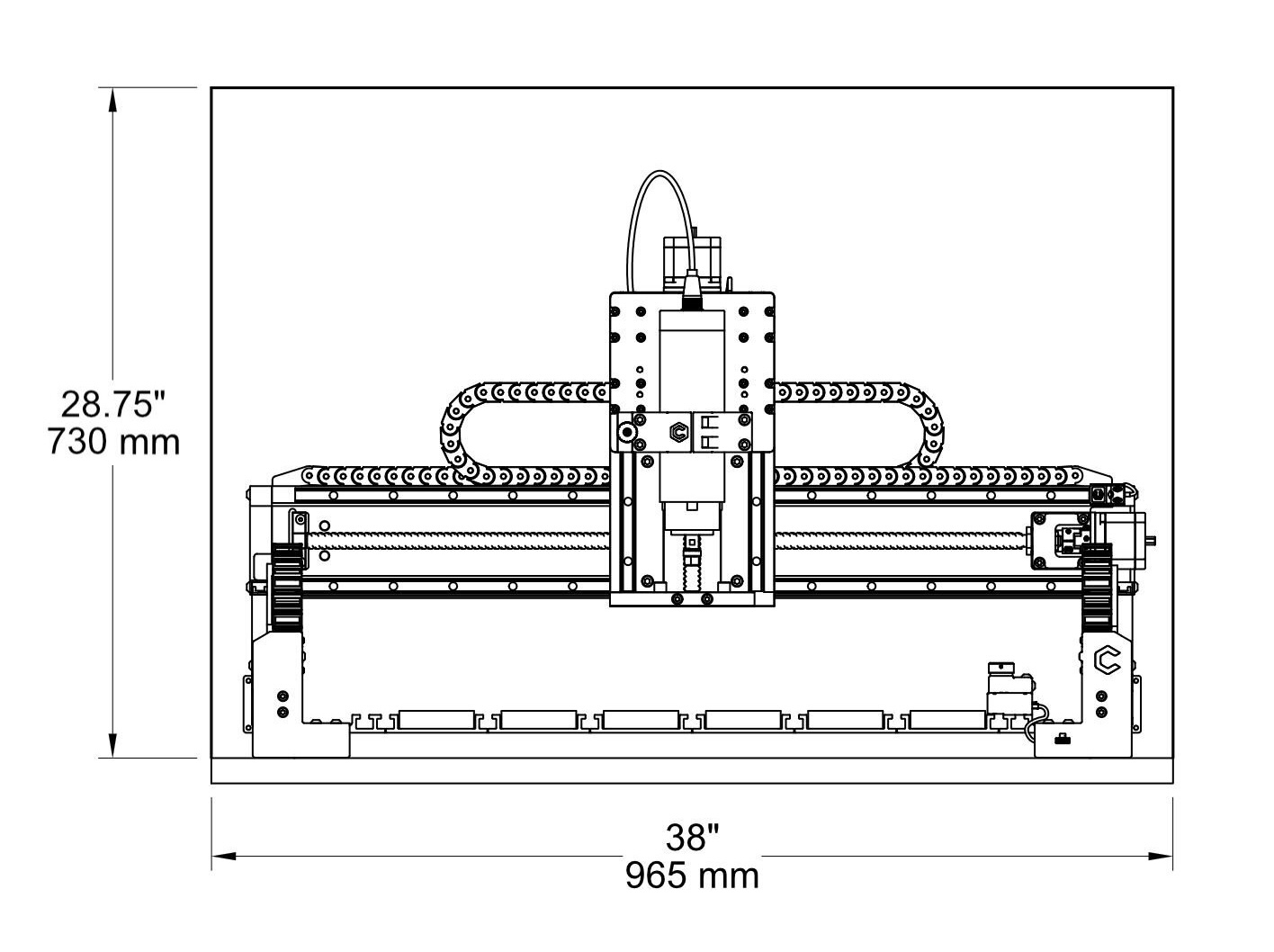

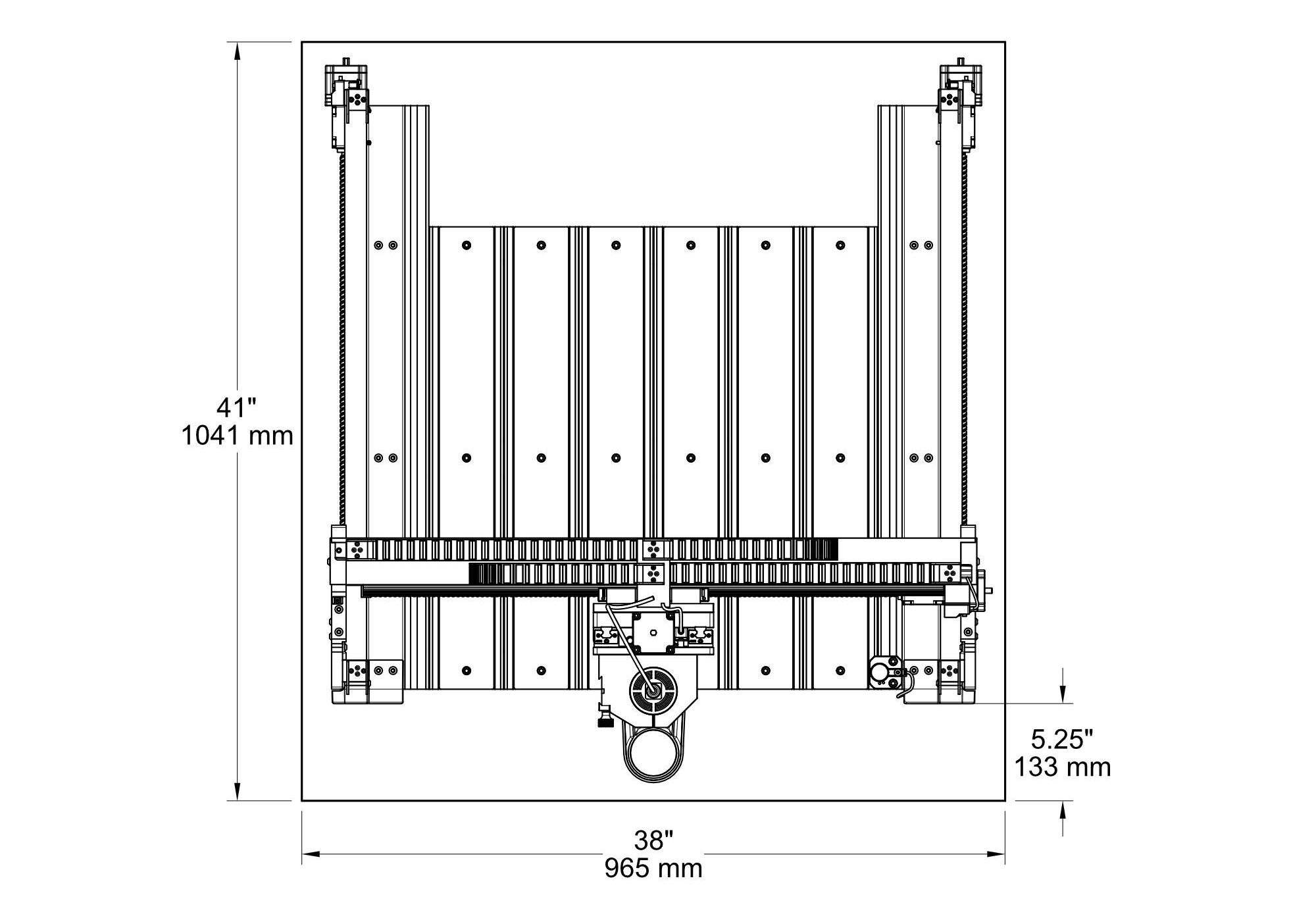

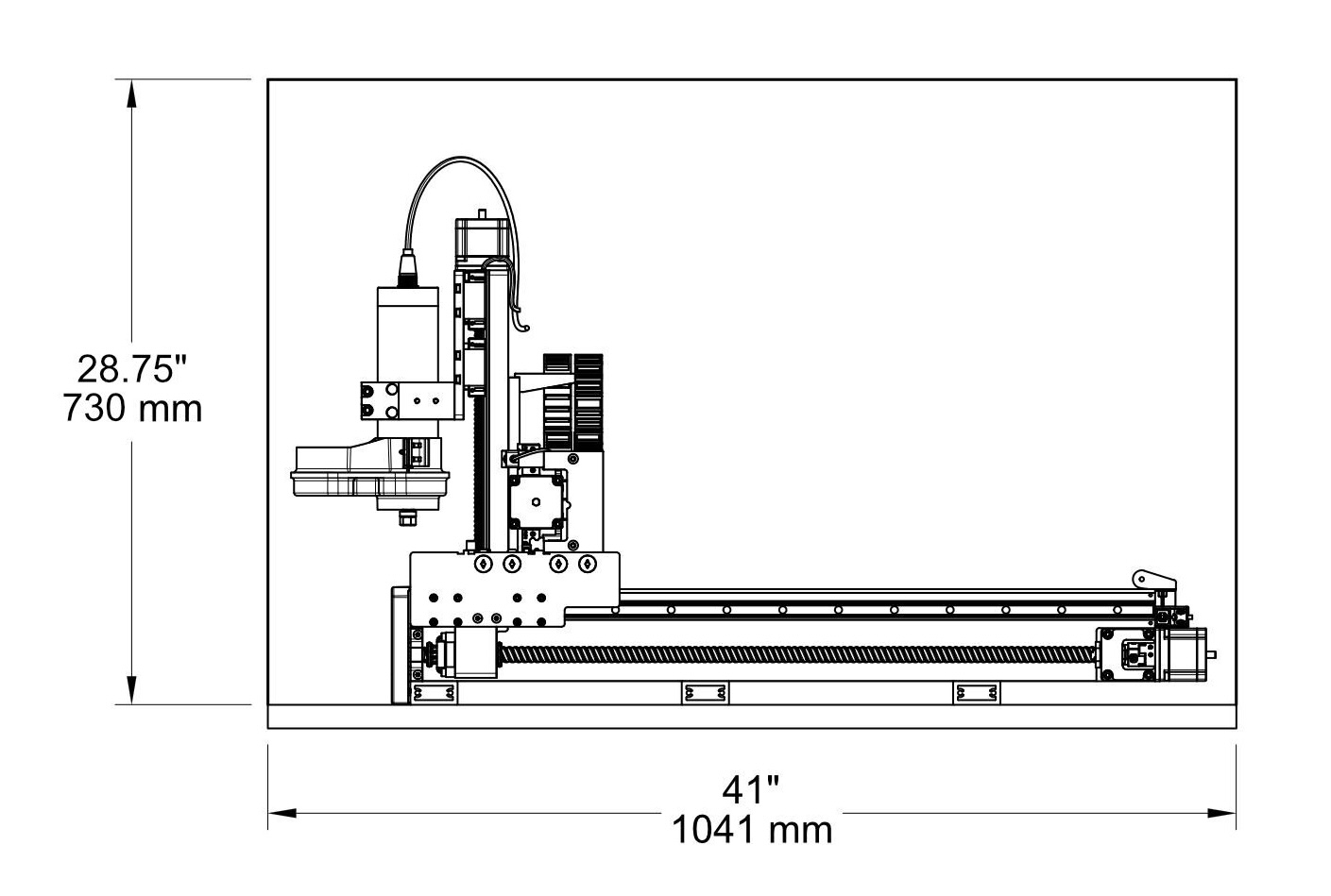

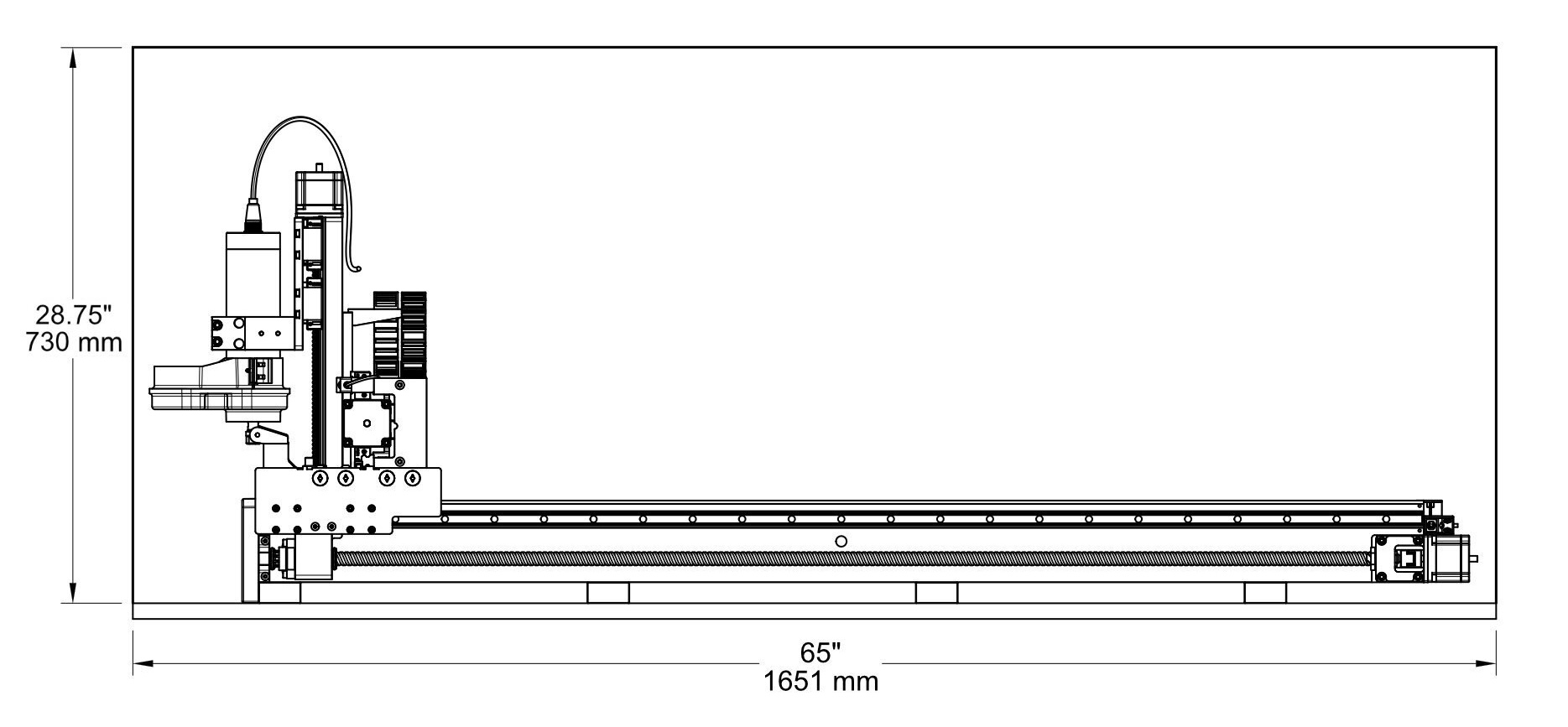

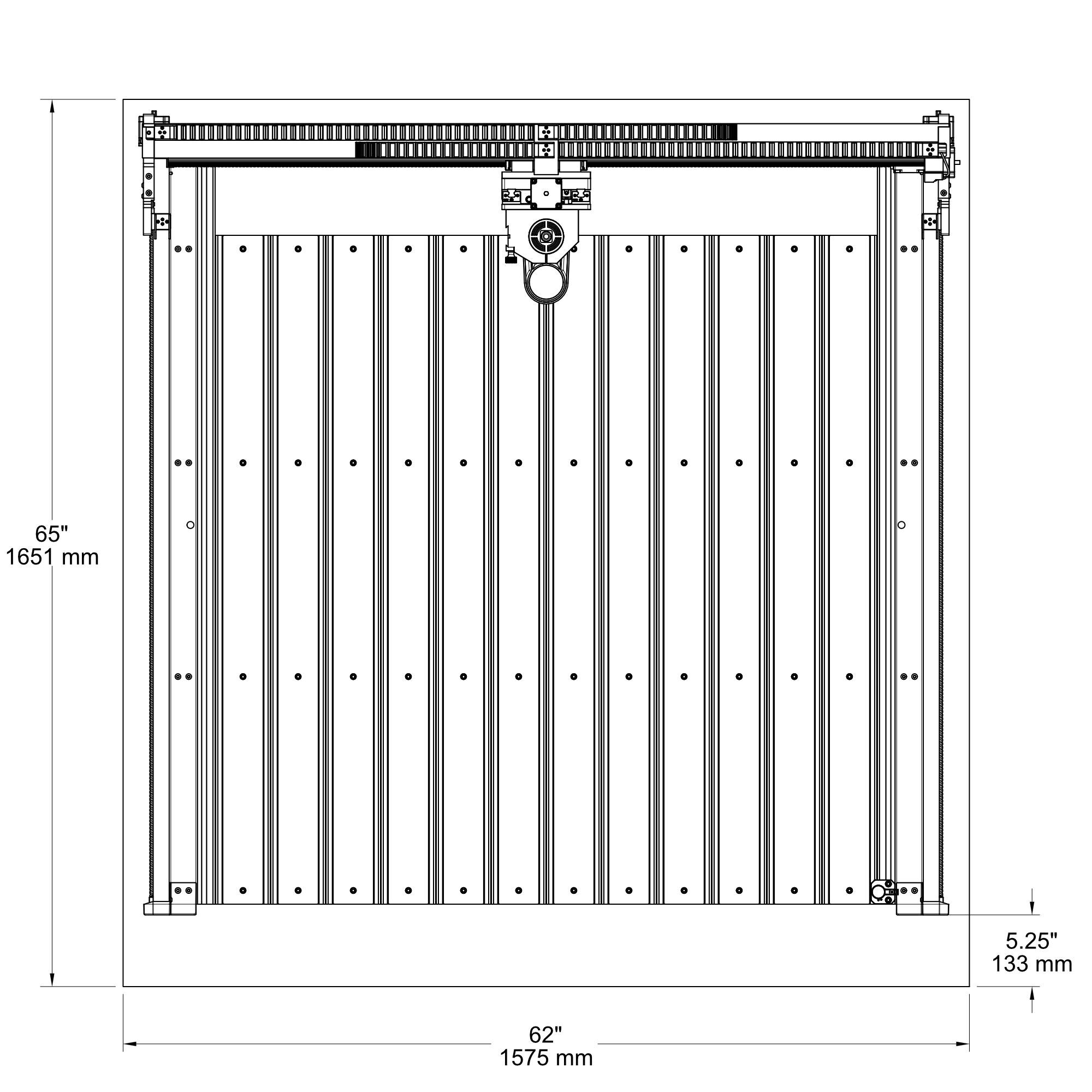

Shapeoko 5 Pro is available in 2 and 4-foot widths, so you can fit standard-sized sheets into the machine without cutting them. There's additional room on either side for clamps to hold everything in place.

The machine is open front-to-back, so you can index larger sheets through the machine.

BitSetter

Shapeoko 5 Pro includes BitSetter, our system to make tool changes a breeze using a combination of custom hardware and software.

We created BitSetter years ago for our original Nomad Desktop CNC Mill, and it's been a staple of Carbide 3D machines ever since.

Power Pendant

The Power Pendant remotely controls the power to the machine as an emergency stop and gives you a feedhold button if you just want to pause the program.

It's mounted on a 2-meter tether from the electronics, so you can mount the pendant somewhere that's easy for you to reach.

Lighted Gantry

Shapeoko 5 Pro includes LED lighting under the gantry to make it comfortable and easy to see your work.

Dust collection

You don't want dust and chips getting into precision mechanical parts so dust collection is critical for a CNC router. We include our Sweepy V2 Dust Boot as a simple and effective way to keep your machine clean.

You provide the shop vacuum, and we've got the rest covered.

Gantry Shift for Joinery

If you need to tip up a board for joinery work, like tenons or dovetails, you can shift the gantry forward by 3.2" to give you the clearance you need over the front edge of the table.

Accessory Mount

We know people like to accessorize their machines so we built a custom accessory mount directly into the router mount.

Look for more accessories to mount here in the near future!

Sweepy Pro (OPTIONAL)

If you prefer a fixed Z dust boot, we built the new Z-axis to work with Sweepy Pro.

Video Training Library

You'll have access to a 5-hour video training library that covers everything from how to run your Shapeoko, how to use the design software, and five projects to get you started.

One-on-One Training

Your machine comes with 4, 30-minute video sessions with a Carbide 3D expert to help you get started.

We'll help you get your machine set up, teach you how to use Carbide Create, and/or answer any questions you have about your machine.

30-Day, Mistakes are on Us

For the first 30 days that you own your machine, we'll replace or repair any Carbide 3D-branded item that gets damaged, even if it's your fault!

This is in addition to our standard one-year warranty on all parts and electronics.

We want you to get up and running quickly, without fear. See more here.

Hybrid Table

Shapeoko 5 Pro is built up from a Hybrid Table. In additonal to being a great workholding system, the Hybrid Table gives the Shapeoko 5 Pro a solid foundation on which to build the rest of the machine.

HG-15 Rails

Shapeoko 5 Pro uses HG-15 linear rails on every axis. These rails are built for much larger, heavier machines and they give the Shapeoko 5 Pro its fantastic performance.

The HG-15 rails are sealed and plugged to keep dust away from the bearings themselves, so you get maximum durability in a rough environment.

Ballscrews

On the X and Y-axis we use 16mm ballscrews with a 20mm pitch to ensure that we maintain the rapid movement that Shapeoko has always been capable of while adding a ton of rigidity.

Our ballscews include custom-made wipers to remove as much dust as possible to keep your machine working for a long time.

Ballscrews Mounts

Where the ballscrews mount to the machine, we use two angular-contact ball bearings to keep backlash, or any other movement, to a minimum.

HDZ Z-Axis

For the Z-axis we use a 1610 ballscrew so that the machine can easily lift a heavy 80mm spindle. In fact, the entire Z-axis was taken from the Shapeoko HDM, and it's the beefiest Z-axis we've ever made.

Fully-Supported Rails

We mount our rails to custom extrusions designed to support the entire length of the rail.

You won't see deflection or twist as the machine moves, so you'll get cleaner cuts with less chatter.

Precision-Machined Extrusions

We don't mount motion hardware to T-slots.

All of our extrusions are precision-machined in-house on industrial machining centers for maximum accuracy.

Optically-Isolated Electronics

Our latest generation of electronics are optically-isolated and now uses a high-quality internal power supply to keep as much noise out of the system as possible.
