DAQCplate

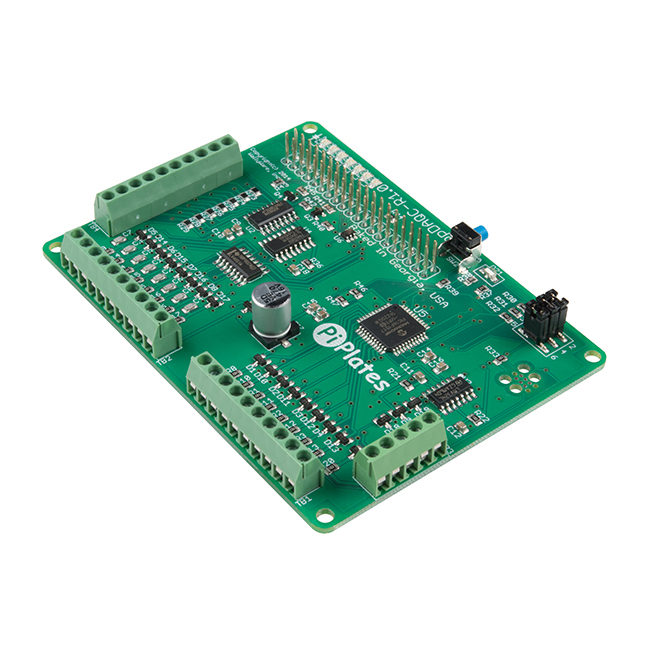

The DAQCplate (Data Acquisition and Controller) from Pi-Plates adds a rich set of input/output options to your Raspberry Pi. It includes seven powerful digital outputs for driving external devices such as relays and high-current LEDs, as well as eight analog-to-digital inputs for measuring temperature, voltage, humidity and more. Additionally, there are eight digital inputs, two analog outputs and seven general-purpose indicator LEDs.

Pi-Plates are a family of stackable and interchangeable add-on circuit boards that allow you to interact with the outside world using your Raspberry Pi. Every Pi-Plate is designed to provide a robust set of features at minimal cost while using the fewest pins possible on the RPi header. Pi-Plates are mechanically and electrically compatible with all revisions of the Raspberry Pi with 40 pin headers (including the Pi 3 Model B and Pi Zero) and are designed to satisfy the needs of hobbyists, experimenters and professionals.

Features:

• Dedicated onboard processor
• 8 protected digital inputs
• 8 protected analog inputs
• 2 protected analog outputs
• 7 open collector outputs
• Provides real-time data collection
• Allows for future code updates
• Only needs two dedicated RPI pins (GPIO 25 and CE1)
• Compatible with all versions of Raspberry Pi
• Design allows up to eight DAQCplates to be stacked together for eight times the I/O
• Uses less than 20mA of DC current during standby2
• Includes programmable bi-color LED
• Additional 14-pin header included if B+ signals are required
• Capable of reading up to seven HC-SR04 distance sensors
