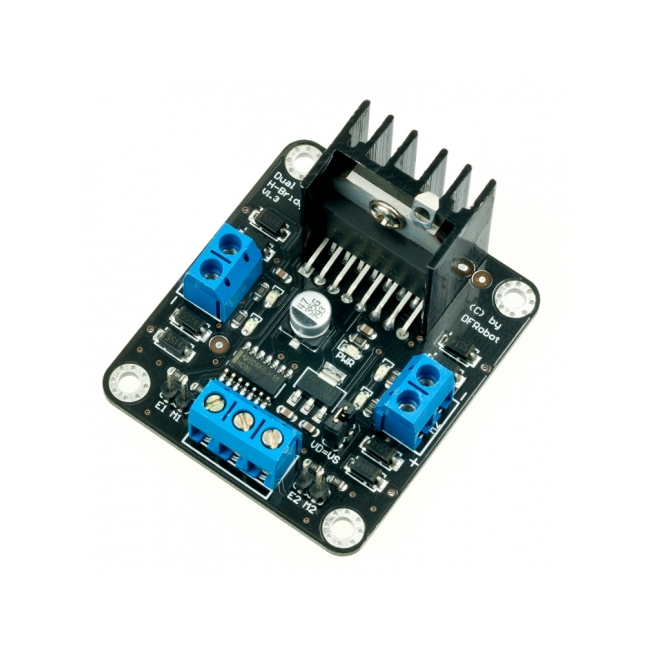

DFRobot - Dual 2A DC Motor Controller (L298N)

This is a 4.8-46V, 2A Dual Motor Controller the latest revision of DFRobot's DC Motor Controller. Its performance has been greatly improved, featuring a larger heatsink capable of handling higher currents.

The module uses, LGS's outstanding high-power motor driver chip, the L298N which makes very easy to control.
The chip allows for direct drive of two bi-directional DC motors, and incorporates high-speed short diodes for protection. Drive current up to 2A per motor output. The driver uses a broad-brush design to reduce wire resistance.

Specification

  • Drive Type: Dual Channel high-power H-bridge driver
  • Motor Input voltage Vs: 4.8 ~ 46V
  • Maximum Motor Current Io: 2A
    (make sure each motor's Stall Current does not exceed this amount)

  • Logic Board Input Voltage: 6 ~ 12V
  • Current draw for Logic Board Iss: 36mA
  • Maximum power dissipation: 25W (T = 75 degree Celsius)
  • Control signal input level:
    High level: 2.3V = Vin = Vss
    Low:-0.3V = Vin = 1.5V
  • Operating temperature: -25 degree Celsius ~ +130 degree Celsius
  • Module Size: 47 mm × 53mm
  • Module Weight: About 29g
