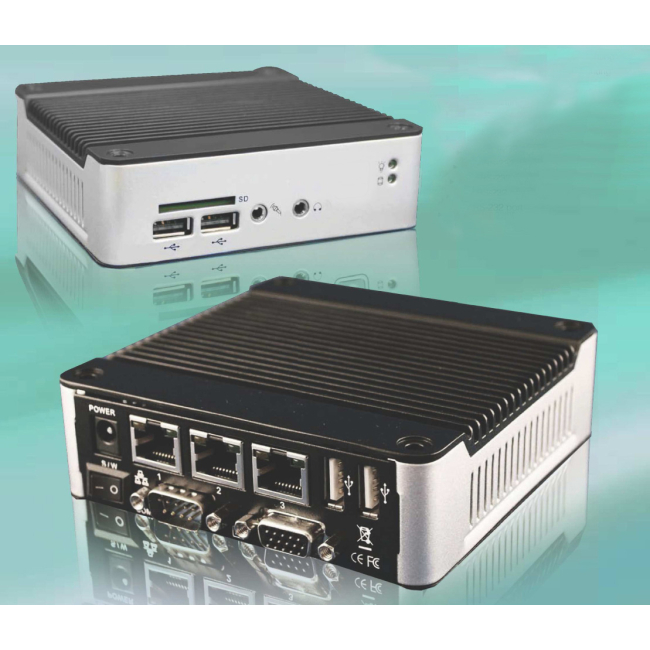

DMP - eBox 3310MX-L3U4AP Mini PC (Auto Power On,SATA,RS232, 3xLAN)

DMP - eBox 3310MX-L3U4-AP Mini PC (SATA, RS232, 3x LAN)

The eBox 3310MX is a complete PC with an i586 architecture. At its core you will find the Vortex86MX+ SoC featuring 32bit Memory bus, 1GB DDR2 RAM and support for 2.5" SATA HDD*.
The 3310MX-L3U4 includes 4x USB 2.0 ports, 1x RS232, 1 VGA, HD Audio (Audio In/Out), 3x Ethernet ports. HDD is provided through an SD card slot or alternatively using a 2.5" SATA HDD* (the most performing option).

The eBox supports i586 operating systems including Linux, Windows XP, Windows CE and Windows Embedded Compact 7.

Model Type eBox 3310MX-L3U4 Processor Vortex86MX+ (1Ghz): i586 Architecture BIOS AMI BIOS Memory 1GB DDR2 VGA Integrated Graphics Chip /D-Sub 15pin Ethernet 10/100 Mps LAN x 3 (RJ45) LAN1 supports Built-in PXE diskless boot LAN2, LAN3 use Realtek RTL8100B USB 4x: 3x External + 1x Internal port Audio Mic In and Line Out SD Slot 1x SATA* 1x connector for 2.5" HDD (SATA HDD not included) PS/2 N/A Serial 1x RS232 port (DB9) Power DC +8V ~15V Size 115 x 115 x 35 mm Weight 500g Operating temperature 5 ~ 50º C Certification CE, FCC, VCCI Supported OS'es Linux, Windows XP, Windows CE


eBox 3310MX-L3U4 applications:
The eBox line of products is suitable for vertical Applications (Kiosk, POS, Thin Client) as well as SoHo applications such as Internet device, compact PC, Home Server, etc.

With its flexible IO (4x USB ports) and support for 2.5" HDD the eBox 3310MX is a versatile device capable offering an excellent price/performance relation.
The inclusion of 3x LAN ports target Vertical Applications and niche markets where multiple network interfaces are required to bridge and integrate different networks.

The improvements made to the Vortex86MX+ - in particular the 32 bit memory bus -, 1GB DDR2 RAM and the support for SATA HDD make the 3310MX an appealing proposal for applications where more processing power is required.

In practice it can perform up to 2x faster than eBox 3350MX and up to 4x faster than Roboard 100. (refer to DMP comparison benchmarks)


Additional Resources and Documentation:

• eBox 33xxMX User Manual

• Performance Tips:
  • If using the SD card as the HDD, use Class 6 or Class 10 Full Size SD cards.
    EWF can also be enabled on Windows XP for improved performance.

  • To unleash maximum performance we recommend installing 2.5" SATA HDD* which offers a very significant performance boost.

• Linux Installation:
  • RoboSavvy Guide to Installing Ubuntu 10.04 LTS on eBox 33xxMX/MX+ devices
  • Files and Resources for Ubuntu
  • Linux Kernels for DMP Vortex86 SoC Devices
    (the DMP Kernels Enable LAN and HD Audio on Linux installations)

• Windows XP Installation:
  • RoboSavvy Guide to Installing Windows XP on eBox 33xxMX/MX+ devices
  • Device Drivers for Windows XP
  • Device Driver for LAN2, LAN3 (RTL8100B)

• Other Operating Systems: see the Compactpc website.

• eBox Product Catalog
  (Robosavvy is a Distributor of eBox in the UK; if you need any particular model in the eBox catalog that may not listed in our store, please contact sales@robosavvy.com to obtain a Quote and place your Order.)



Kit Contents:

• 1x eBox 3310MX-L3U4
• 1x 15V 1.5A Power Supply included (UK plug; other plug types available on large orders)
• 1x CD Rom with User Manual and Device Drivers

* eBox 3310MX models ship with built-in support for 2.5" SATA HDD but no SATA HDD is included; the SATA HDD should be obtained separately.
For users who do not wish to use a SATA HDD, eBoxes can operate using an SD card as their HDD. Simply introduce your SD card, turn on the eBox and it will be recognized as a normal Hard Drive.
