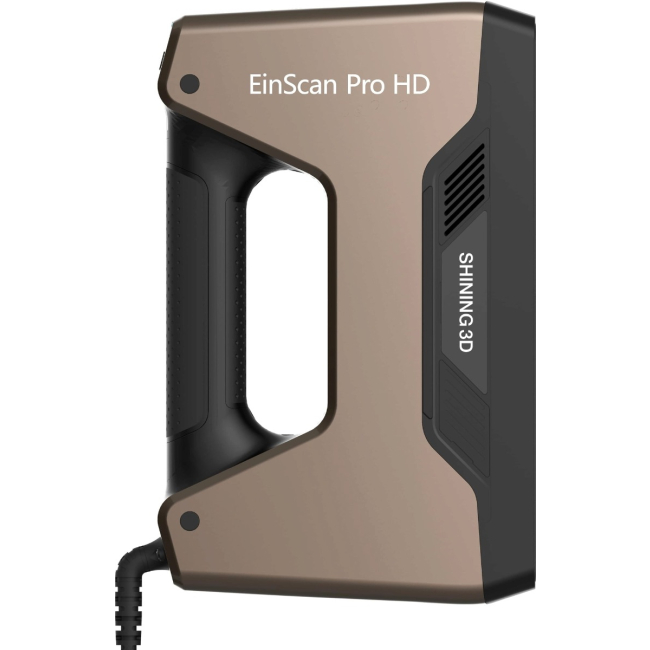

EinScan Pro HD
£7,998.00
£6,665.00
As a new member of the EinScan Pro series of multifunctional 3D scanners with a modular design, EinScan Pro HD delivers unparalleled performance with high resolution and accuracy. The extraordinary versatility and powerful optimisations result in the ultimate, highly efficient and professional 3D scan experience. EinScan Pro HD is the reliable assistant for designers and engineers whose priority is high-quality 3D modelling.
SKU
S3D-000019
As a new member of the EinScan Pro series of multifunctional 3D scanners with a modular design, EinScan Pro HD delivers unparalleled performance with high resolution and accuracy. The extraordinary versatility and powerful optimisations result in the ultimate, highly efficient and professional 3D scan experience. EinScan Pro HD is the reliable assistant for designers and engineers whose priority is high-quality 3D modelling.
High resolution with fine details
By integrating a new strip light projection module, the strip pattern, which was previously only used in Fixed Scan Mode, can also be used in Handheld HD Scan Mode. The optimised algorithm enables a minimum point spacing of 0.2mm. This means that the resolution and accuracy are as good as with the fixed scan.
Modular design for more possibilities
The Colour Pack and Industrial Pack can still be added as optional add-ons to EinScan Pro HD and support more versatile applications. Different alignment methods, feature alignment, marker alignment, turntable marker, manual alignment and texture alignment (with Colour Pack) could enormously increase the efficiency of scanning without additional preparation.
The Colour Pack takes the complete colour and texture with geometry. Scanning efficiency is increased by texture alignment.
The Industrial Pack contains the turntable, which enables a static, automated scan with higher resolution.
Less restrictions on objects to be scanned
Thanks to the new light projector hardware and the new software algorithm, EinScan Pro HD can scan a wider variety of objects with dark, black or metal surfaces. This enables a wider range of scannable materials.
High speed
EinScan Pro HD has a much higher scanning capacity than its predecessor. In handheld mode, it can process up to 3,000,000 points per second. In Fixed Scan Mode, it can process every single frame in less than 0.5 seconds.
Thanks to a USB 3.0 connection, a very high data transfer speed is available.
High accuracy for high-quality 3D modelling
With the type of positioning method, both the scanner and the objects to be scanned can be moved during the scanning process. The accuracy in fixed scan mode is 0.04 mm. With marker alignment in handheld mode, the volumetric accuracy is up to 0.045 mm + 0.3 mm / m.
EXSCAN PRO scanning software
The new scan software EXSCAN PRO offers a brand new user interface and a new workflow. The 3D scanning process is as simple for new or experienced users.
- Clear instructions for the work steps
- User-friendly user interface
- Data processing: simplify, eliminate holes, smooth, sharpen, erase, etc.
- Data measurement: configure coordinates, design and measure aspects
- High compatibility
Solid Edge SHINING 3D Edition
The 3D scanner is delivered with the Solid Edge SHINING 3D Edition, which contains the most important 3D CAD design functions. This is a practical and impressive 3D design tool with which you can implement your ideas.
Application areas:
- For higher efficiency and quality
- Manufacturing & reverse engineering
- 3D modelling for customer-specific products
- Services
- Art & Heritage
- Design
- Healthcare
- Research and training
MORE INFORMATION
|
Model |
EinScan Pro HD |
|||
| Scan mode | Handheld HD Scan | Handheld rapid scan | Fixed scan with turntable (add-on) | Fixed scan without turntable (add-on) |
| Single shot accuracy | 0.045 mm | 0.1 mm | 0.04 mm | 0.04 mm |
| Volumetric Accuracy | 0.3 mm / m (markers alignment) | 0.3 mm / m (markers alignment) | / | / |
| Scan speed | 10fps 3,000,000 points / sec 100 data capture lines |
30fps 1,500,000 points / sec |
/ | / |
| Point distance | 0.2-3 mm | 0.25-3 mm | 0.24 mm | 0.24 mm |
| Single scan range | 209 * 160mm - 310 * 204mm | |||
| Depth of Field | + - 100 mm | |||
| Working distance | 510 mm | |||
| Align mode | Markers, feature, hybrid | Feature, markers, texture, hybrid | Turntable Coded, Targets, Feature, Marker, Manual Alignment | Markers, Feature, Manual Alignment |
| Texture scan | Yes (with additional Colour Pack) | Yes (with additional Colour Pack) | Yes (with additional Colour Pack) | Yes (with additional Colour Pack) |
| Outdoor operation | Set up the shelter of cover to avoid direct sunlight | |||
| Special Scan Object | For a transparent, reflective or dark object, please powder spray prior to scanning | |||
| Light source | LED | |||
| Printable data output | Able to export watertight 3D model directly to 3D printing | |||
| Data format | OBJ, STL, ASC, PLY, P3, 3MF | |||
| Body Weight scanner | 1.13 kg | |||
| OS system support | Windows 10, 64 bit | |||
| Display Card Suggested | NVIDIA GTX 1080 or higher - Display memory> 4GB, CPU: i7 or higher; RAM: 64GB or higher; USB 3.0 |
|||
| Display Card Required | NVIDIA GTX 660 or higher, CPU: i7 or higher; RAM 8GB or higher, USB 3.0 | |||
Product videos:
| Texture | No |
|---|
