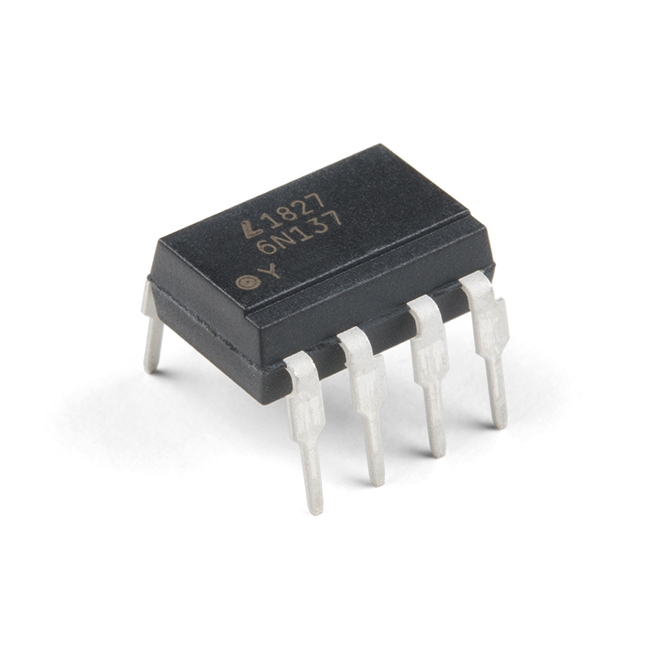

High Speed Optoisolator - 6N137

This diode-transistor photocouplers consist of an LED, optically coupled to a high speed photodetector to transmit electrical signals between circuits while still isolating your system from higher voltages. The 6N137 optoisolator is presented in an 8-pin DIP package.

The output features is an open collector and coupler parameters are guaranteed over the temperature range from -40℃~5℃. The internal shield provides a guaranteed Common Mode Transient Immunity (typical) 10KV/μs.

Features:

• High Speed: 10MBd
• Common Mode Rejection: 10KV/μs

Documents:

• Datasheet
