Hobby Gearmotor - 140 RPM, Male Connectors (Single)

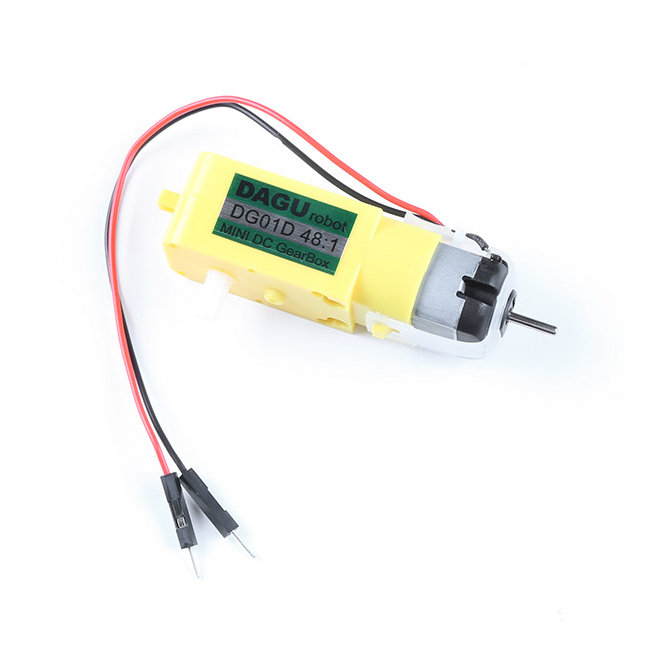

This is a hobby gearmotor from DAGU. These gearmotors are the same ones recommended for use in the Shadow Chassis and offer a cheap and easy-to-use setup to get your wheels turning. Each Hobby Gearmotor also possess a 9mm long output on a straight axis.

These gearmotors require a voltage of 4.5V with a no load current of 190mA while possessing a gearbox ratio of 48:1 and a wheel speed of 140 RPM unloaded.

Features:

• Suggested Voltage: 4.5VDC
• No Load Speed: 140RPM
• No Load Current: 190mA
• Max. Load Current: 250mA
• Torque: 800 gf-cm

Documents:

• Datasheet (DG01D)
