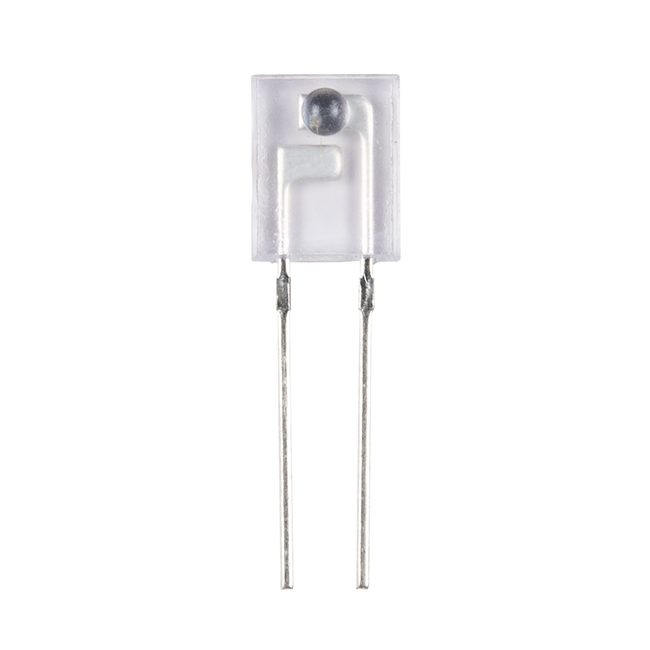

Infrared Detector

An Infrared detector is a detector that reacts to infrared (IR) radiation. These simple devices operate at 940nm and work well for generic IR systems including remote control and touch-less object sensing. Using a simple ADC on any microcontroller will allow variable readings to be collected from the detector.

Features:

• Voltage - Collector Emitter Breakdown (Max): 30 V
• Current - Collector (Ic) (Max): 20 mA
• Current - Dark (Id) (Max): 100 nA
• Wavelength: 940nm
• Mounting Type: Through Hole
• Orientation: Side View
• Operating Temperature: -25°C ~ 85°C (TA)

Documents:

• Datasheet
