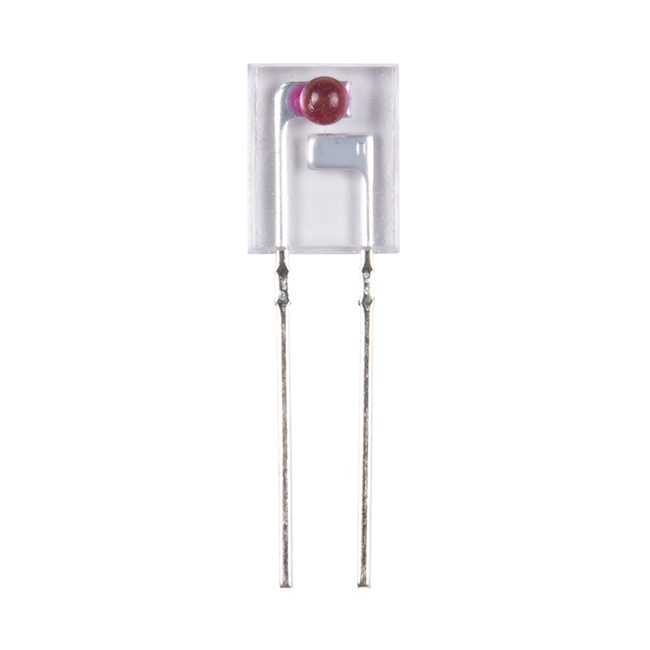

Infrared Emitter

Be the first to review this product

£0.80 £0.67

An Infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. This little part is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. This simple device operates at 940nm and works well for generic IR systems. This emitter is driven up to 50mA with a current limiting resistor as with any LED device.

SKU

S-SEN-18772

An Infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. This little part is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. This simple device operates at 940nm and works well for generic IR systems. This emitter is driven up to 50mA with a current limiting resistor as with any LED device.

Features:

Continuous Forward Current: 50mA
Reverse Voltage: 5V
Operating Temperature: -25~+85°C
Wavelength: 940nm
Voltage - Forward (Vf) (Typ): 1.2V
Viewing Angle: 60°
Orientation: Side View

Documents:

Datasheet
