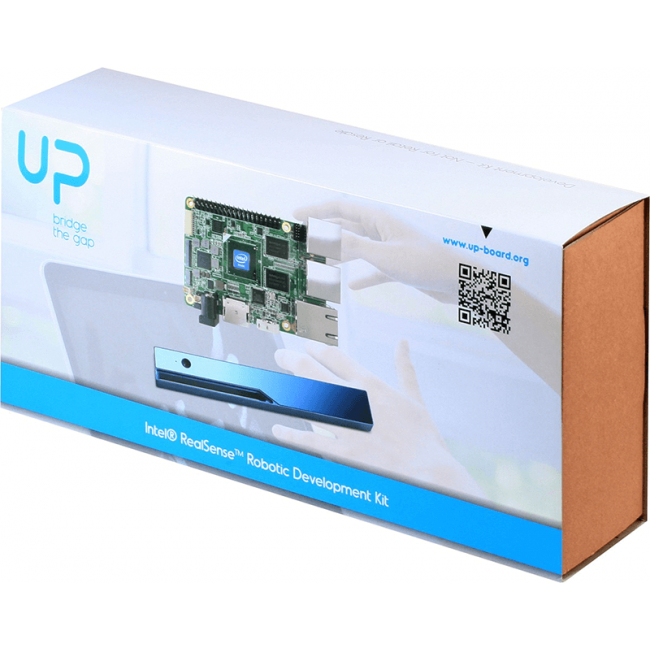

Intel® RealSense™ Robotic Development Kit
The Intel® RealSense™ Robotics Development Kit is a bundle that features a credit card size board and an Intel® RealSense™ R200 Camera. Together, this high performance and low-power consumption combination bridges the gap between rapid prototyping and productization.
SKU
INT-953143
Intel® RealSense™ Robotic Development Kit is a bundle that features a credit card-sized AAEON UP board and an Intel® RealSense™ Camera (R200). This kit allows designers to build their own robot prototypes that can recognise objects or people and navigate an environment. It comes with Linux pre-installed and support for the Robot Operating System (ROS). In addition, many other operating systems (including Microsoft Windows 10 and various other Linux versions) are possible, with support through the developer community.
Features
Felixbility and Options
The robotic board has a 40-pin General Purpose bus which provides the freedom for makers to create their own interface boards. In addition, there are more interfaces available, such as USB 2.0 port on connectors and header, USB 3.0 OTG, full speed gigabit Ethernet port, Embedded DisplayPort (eDP), Camera interface (CSI), HDMI video output, I2S audio port, and Real-Time-Clock (RTC).
Cross Platform & Open Source
The robotics board ships with support for Ubuntu. In addition, many other operating systems (including Microsoft Windows 10 and various other Linux versions) are possible, with support through the developer community.
Specifications
| SoC | Intel® Atom™ x5-Z8350 Processor (2M Cache, 1.44 GHz up to 1.92 GHz) CPU with 64 bit architecture; Quad Core |
|---|---|
| Graphics | Intel® HD 400 Graphics |
| Video & Audio | HDMI 1.4b i2S audio port |
| Camera Interface | CSI (4 Mega pixel) |
| USB 2.0 | 4x UB 2.0; 2x USB 2.0 pin header (10 pins in total) |
| RTC | Yes |
| Power | 5V DC-in @ 3A 5.5/2.1mm jack |
| Dimensions | 3.37" x 2.22" / 85.60 mm × 56.5 mm |
| Memory | 4GB DDR3L-1600 |
| Storage Capacity | 32GB eMMC |
| Display Interface | DSI/ eDP |
| Ethernet | 1x Gb Ethernet (full speed) RJ-45 |
| USB 3.0 | 1x UB 3.0 OTG |
| Expansion | 40 pin General Purpose bus, supported by Altera Max V. ADC 8-bit@188ksos |
| Compatible Operating System | Ubuntu 14.04 or 16.04 |
| Certificate | CE/FCC Class A, RoHS complaint, Microsoft Azure certified |
Warranty & Customer Support
The Camera is sold as-is, without any warranty of any kind, including without limitation, any implied warranties of fitness of purpose, merchantability and non-infringement. The Camera may have known defects and errata.
CLASS 1 LASER PRODUCT
Robotic Development Kit is compliant to Electromagnetic Compatibilities (EMC) as a Class A device which is marketed for use in a commercial or industrial application and is not intended for use in the home or residential area.
