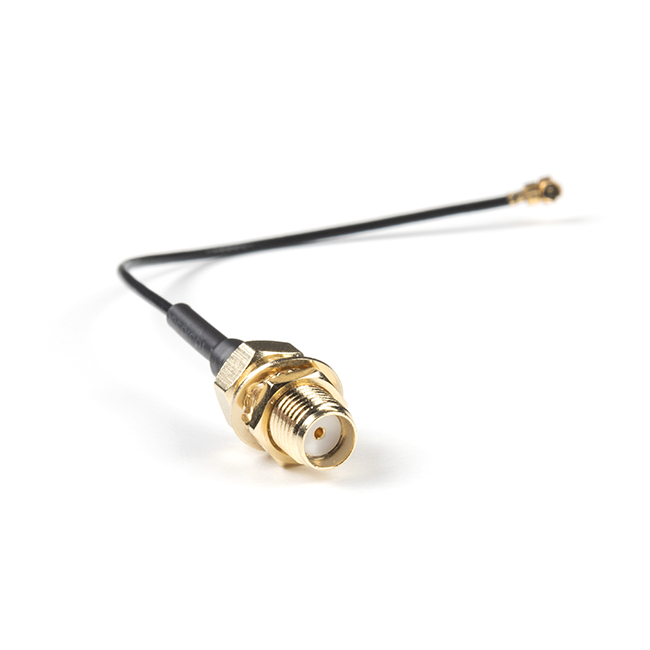

Interface Cable U.FL to SMA

A U.FL to SMA (jack) bulkhead straight connector with a 1.32 mm diameter cable. Less than -2 dB cable insertion loss up to 6 GHz. Both connectors are gold-plated brass and the cable conductor is silver-coated copper.

Includes:

• 1x U.FL to SMA cable
• 1x Locking Nut and Bulkhead Washer

Features:

• Connector A Series: SMA
• Connector A Gender: Jack (Female)
• Connector A Body Style: Bulkhead
• Connector B Series: U.FL
• Connector B Gender: Plug (Male)
• Connector B Body Style: Right Angle
• Cable Length: 100 mm
• Impedance: 50 Ohms
• Maximum Frequency: 6 GHz
• Cable Type: 1.32 mm Coax
• Contact Plating: Gold
• Contact Material: Brass
• Connector A Polarity: Normal
• Connector B Polarity: Normal
• Polarity: Normal

Documents:

• Datasheet
