J Tech - Shapeoko3 Magnet Mounting Kit

Laser Upgrade Your Shapeoko3!

Installation Instructions: CLICK HERE

Purchase this if you bought the magnetic laser shroud version.

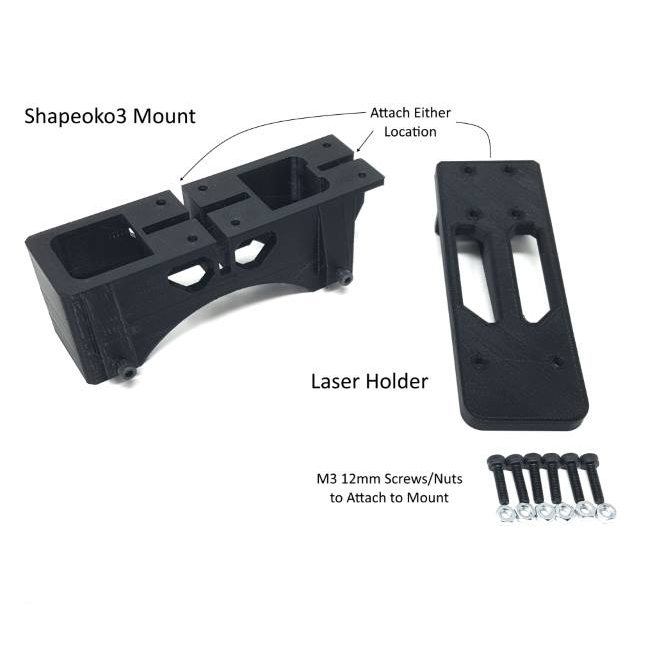

1 - Laser Holder: Holds the laser and attaches to the Mount.

2 - Dust Boot Mount: Fits over the aluminum spindle holder in the front.

3 - M3 12mm Screws/Nuts: To attach the laser holder to the main mount.

4 - Zip Ties: To clean everything up for cabling.

5 - Zip Tie Holder: To place on the Z axis gantry to hold the laser cable in place.

6 - Molex Mini-Fit Cable: Input control cable for the laser driver to the Carbide Board.

7 - Press Fit Pin and Tool: For putting the press-fit connector on the Carbide Board.

8 - Laser and Fan Extension Cables: 10 ft extension cables for the laser and fan

Full Mounting Kit

Two Mounting Locations Available

Middle Position

Side Position

Magnets Make it Super Easy to Remove When Not Using the Laser!
