SPOOL TYPE

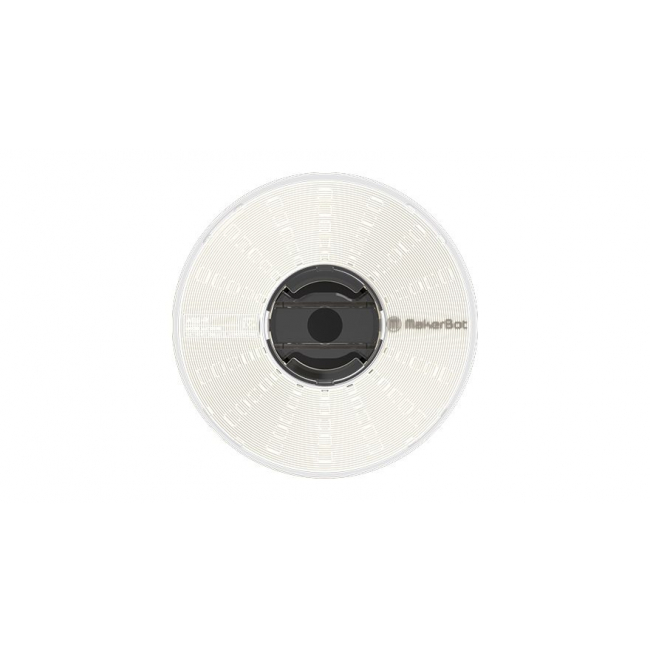

Smart Spool™ provides valuable information including material type, color, and amount remaining via an RFID chip directly to MakerBot Print, while a desiccant in the spool maintains a low moisture level inside the drawer bay.
DIMENSIONS AND WEIGHT
Spool Diameter: 21.8 cm (8.6 in)
Spool Width: 4.2 cm (1.65 in)
Material Diameter: 1.75 mm
Shipping Weight: 1.1 kg (2.4 lb)
Net Weight: 0.65 kg (1.43 lb)
STORAGE ENVIRONMENT
Store in the included a vacuum-sealed metalized polyester bag to avoid moisture absorption from air; long-term exposure to humidity can compromise material quality and performance. Make sure the built-in desiccant is in the spool to absorb any moisture exposure during the material loading process.
Properties | Test | ABS-R |
Tensile Strength (MPa) | ASTM D648 | 41 |
Tensile Modulus (MPa) | ASTM D648 | 2400 |
Strain at Yield (%) | ASTM D648 | 2.3 |
Strain at Break (%) | ASTM D648 | 33.4 |
Flexural Strength (MPa) | ASTM D790 | 79 |
Flexural Modulus (MPa) | ASTM D790 | 2600 |
Izod Notched Impact Strength (J/m) | ASTM D256 | 129 – C/H |
Izod Unotched Impact Strength (J/m) | ASTM D256 | 970 - C |
Heat Deflection Temperature – 64 psi (C) | ASTM 648 | 105 |
Heat Deflection Temperature – 264 psi (C) | ASTM 648 | 102 |
Filament Thickness | 1.75 mm |
---|---|
Plastic Type | ABS |
3D Printing Technology | Filament (FDM/FFF) |
