Mosaic CANVAS Hub
£84.90
£70.75
Allows Palette 2 to communicate digitally with your printer and your computer. This communication leads to better calibration, more reliable printing, and a wireless link to the CANVAS platform.
SKU
MOS-CanvHub

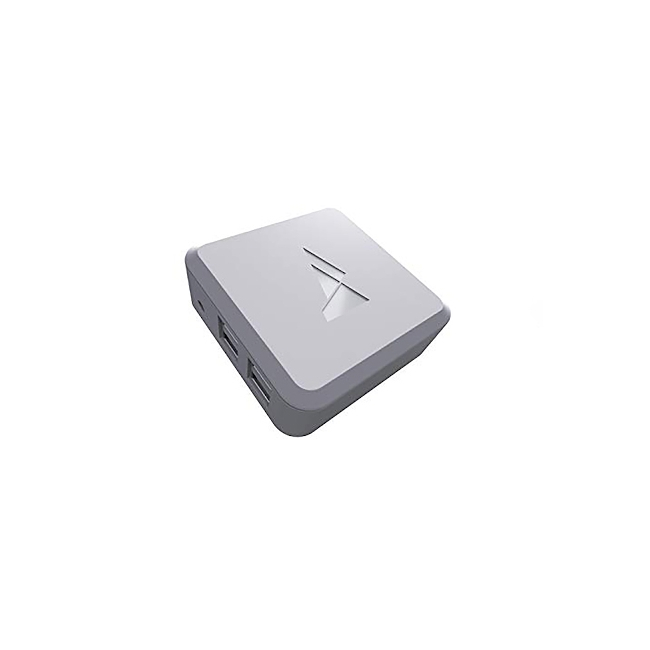

Mosaic CANVAS Hub
A vital part of Mosaic's multi-material ecosystem, the CANVAS Hub acts as a bridge that allows your hardware products to communicate with each other in real time. By using a Raspberry Pi Zero and customized version of Octoprint, models can be prepared in the CANVAS browser-based cloud software designed specifically for multi-material printing, and print files can be sent directly to your printer and started directly from the CANVAS interface.
Get Connected, Stay Connected
CANVAS Hub improves the 3D printing process by focusing on two main areas:
1. Enabling direct communication between your 3D printer and your Palette 2 / 2 Pro.
2. Connecting your Palette 2 / 2 Pro and 3D printer wirelessly to CANVAS and your computer.
Streamlined Palette 2 Experience
Simplified startup and increased reliability with the CANVAS Hub allows users to focus less on tweaking settings and more on creating beautiful, multi-material 3D prints. And all with reduced filament waste as Palette will always know exactly where in a print it is.
Widely Compatible
The CANVAS Hub is compatible with many but not all 3D printers.
Make sure your printer is supported
Technical Specifications
| Unit Weight | 0.1 kg (0.2 lbs.) |
| Unit Dimensions | 8.1 x 8.1 x 3.0 cm (3.1" x 3.1" x 1.1") |
| Shipping Weight | 1 kg (2.2 lbs.) |
| Shipping Box | 27 x 21 x 6 cm (11" x 8" x 2.5") |
| Control Interface | CANVAS via Web Browser |
| Compatible Operating Systems | Windows, Mac, Linux (Tested on Ubuntu 16.04) |
| Data Interface | USB for Printer and Palette 2, Wifi for Canvas, IEEE 802.11b/g/n 2.4GHz, Channels 1-11 |
| Memory | 8GB Internal Storage |
| Ambient Operating Temperature | 15 - 30°C (60-86°F) |
| Control Board | Raspberry Pi Zero W |
| External Camera Compatibility | Not Supported |
| Power Requirements | 5V DC, 2A Max |
| Power Adapter Input Requirements | 100 - 240V (50/60Hz) 0.4A |
| Power Adapter Compatibility | USA, UK, AU, EU |
