Opt Lasers - PLH3D-XT-50

£948.80 £790.67
SKU
OL-PLH3D-XT-50
Opt Lasers
Customize Opt Lasers - PLH3D-XT-50

* Required Fields

Your Customization
Opt Lasers - PLH3D-XT-50
Opt Lasers - PLH3D-XT-50

In stock

£948.80 £790.67

Summary

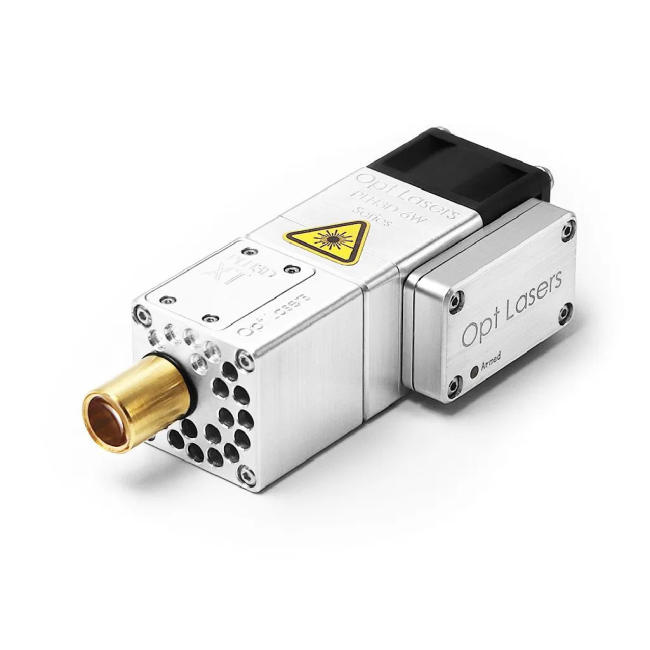

    Full Laser Upgrade Kit with XT-50 Laser Head

    You don’t need higher laser power for laser engraving wood. PLH3D-XT-50 can effortlessly laser engrave wood while being moved at maximum working speeds of popular CNC machines.. In addition, XT-50 laser engraves with Ultra HD resolution and your eye would not see any difference if the focused beam spot was any smaller. XT-50 laser engraver has a square beam spot profile that can be easily adjustable in size by changing the working distance, which also modifies the resolution obtained.

    It uses state-of-the-art optics yielding sharp and evenly-distributed focused beam spot to produce clear engravings. No alternative optical system can compete with the one utilized in the XT-50 engraving laser head. XT-50 laser engraver has the perfect size to cooling optimization ratio and, effectively, your laser diode’s lifetime will not decrease even if you use it 24/7. Furthermore, our XT-50 laser engraving head uses only 30 W of electrical power. You are also assured that the highest quality materials and components are used for its production process, signed with our Opt Lasers brand’s name.

    Microscopic & Square Beam Spot

    All of the laser heads from PLH3D-XT-Series are distinguished by microscopic and square beam spot. PLH3D-XT-50 laser head is achieving beam spot width below 50um and PLH3D-XT-10 even below 10um. The square spot allows for perfect details when rasterizing graphics, and also ensures consistent thickness of the cutting line, so that even small details are perfectly reproduced according to the design. With the XT-50 you can achieve an ultra HD resolution of over 500 DPI and with XT-10 even 2500 DPI.

    High Power Density

    As known power density is defined how much power is located in certain area. Typically it is specified in kilo wats over cm2 or mm2 (kW/cm2 or kW/mm2). This parameter is one of the most crucial parameter for cutting or engraving different materials. PLH3D-XT-Series laser heads are designed to achieve small beam-spot size the outcome of this proportional increase of the power density. Higher power density reveals new engraving and cutting possibilities. Additionally, engraving and cutting processes are significantly faster comparing to laser heads without anamorphic optics.

    Powered by Blue Laser Diodes

    Unlike infrared light, blue light is more easily absorbed by numerous industrial materials. This directly translates to several advantages including reduced power consumption and more compact heat sinking.

    Integrated Control Electronics

    In many laser heads that have the diode connected to the diode’s driver via a long cable and the coupling is done with connectors. Long wires are characterized by substantial inductive effects. This results in delays of the diode’s response in relation to the diode’s driver and as extension it also results in blurred lines. Connectors are more prone to disconnections than coupling done via direct soldering. Disconnecting during laser processing can damage the laser head.

    Long Lifetime

    Opt Lasers laser heads are industry-level grade CNC machine tools. Mechanical parts are made from machined aluminium. Our products are designed with cooling optimization in mind. Investing in the highest quality equipment ensures the best performance and price.


    Lightweight Design

    Featuring a lightweight, Aluminum body that makes the laser weight less than 370 g.

    Simple Integration

    Can be set on nearly any CNC machine since it accepts both analog and PWM CNC signals.

    Instant-On Power

    No warm-up time


    Exceptionally Accurate Metal Engraving

    PLH3D-XT-Series engraving laser heads were devised as a series of specialized laser heads for engraving with extremely high resolution and cutting thin materials with ultra-thin lines. Based on our 6W-Series laser heads, XT-Series laser heads inherited all their advantages: versatility, compact dimensions and high-speed driver. The microscopic beam spot allows to make precise and very small size engravings in a wide variety of materials including stainless steel.

    Stainless Steel
    OperationFeed RateAir Flow
    Engraving5mm/s (11.8 IPM)5L/min

    Ultra-HD Ceramic Tile Engraving

    The 500 DPI capability allows for amazing quality engravings on materials like ceramic tiles. Higher power density reveals new engraving and cutting possibilities. Additionally, engraving and cutting processes are significantly faster comparing to laser heads without anamorphic optics.

    Ceramic Tile
    OperationFeed RateDPI
    Engraving2500/min423

    High-End Detailed Engraving & Cutting on Soft Materials

    PLH3D-XT-50 laser heads, thanks to the fact that they achieve a spot width of less than 50um, also allow cutting materials with care for a thin even cut line. For comparison, a typical human red blood cell is 5-10um in size, and the diameter of a single human hair is 50-20um.

    Coal Duplex
    OperationThicknessFeed RateAir Flow
    Cutting1mm (0.0393")500 mm / min10-20L/min

    Accessories

    LaserDock (Included in the Kits)

    Speeds up your work and keeps your laser clean

    An effective solution for both large and small CNC machines and 3D printers, this magnetic docking station allows the PLH3D-XT Series laser for engraving to be quickly attached or removed. This facilitates quick access for CNC milling or 3D printing. By protecting the laser head from plastic or wood dust from your printer or CNC mill, it can extend the lifetime of the engraving laser and reduce maintenance. It also allows you to take advantage of the entire working area of your 3D printer or CNC machine.

    PLH3D-CNC Adapter (Included in the Kits)

    Easy connection to any CNC machine

    Many types of CNC machines and 3D printers with different control voltage standards and levels available on the market may be used to control the PLH3D head. The PLH3D-CNC Adapter converts all these signals to the standard compatible with the PLH3D head. The PLH3D-CNC Adapter contains widely used industry-standard screw connectors. A dedicated desktop low-noise power supply unit assures compatibility and reliability as well as eliminates problems caused by using third-party power supplies. The general status (power, armed, laser working) may be checked at a glance by watching three LEDs.

    Laser Safety Glasses (Included in the Kits)

    Ensure the highest quality of protection

    These laser glasses can help reduce the probability of light entering the eye from the diffusely reflected laser light. It is important to note that while these laser glasses may be helpful at adding an additional layer of safety for diffusely scattered light, the user should not depend on them to protect against the beam entering the eye, either directly or indirectly. It is necessary to take additional precautions when working with lasers, receive proper training on how to do so and not depend on equipment as an alternative to safe practices.

    Other accessories (Included in the Kits)

    To make your Opt Lasers Kit plug & play

    With these accessories, it is a plug & play kit. Height Reference - helps you set your working distance, power adapter with AC adapter to allow you to plug into all outlets (US, AU and Europe), wiring and screw set to connect everything together and mount to connect the machine.

    PLH3D-XT-10PLH3D-XT-50
    Optical Output Power0.5W6.0W
    Wavelength405450
    >Beam Spot Size10 µm by 4 µm50 µm by 4 µm
    Resolution for Laser Engraving Applications3100 DPI500 DPI
    Dimensions of Laser Head (L x W x H)40 x 55 x 140 mm
    (1.6 x 1.7 x 5.51 in.)
    Weight of Laser Head, Typ.300g
    Flow Rate of Fan43 m3/h (25 CFM)
    Fan Noise58 dBA
    Mounting Hole Pattern4 holes, 24 x 15 mm
    (0.94 x 0.59 in.)
    Mounting Hole TypeM3 x 0.5 x 4.5 mm
    Max. Ambient Temperature40°C (113°F)
    Modulations Inputs2
    Modulation Input 1Analog/TTL/PWM,
    0 – 5 V
    Modulation Input 21TTL/PWM 0 – 24 V
    Recommended PWM Base Frequency5 – 10 kHz
    Max. Modulation Bandwidth30 kHz
    Input Impedance of 1 and 2>1 k-Ω
    Power Supply Unit Voltage12 – 24 V
    12 V PSU Min. Current2.5 A
    24 V PSU Min. Current1.25 A
    Max. Power Consumption20 W30 W
    1. "Laser Off" state is <2 V. "Laser On" state is 3 – 24 V.
