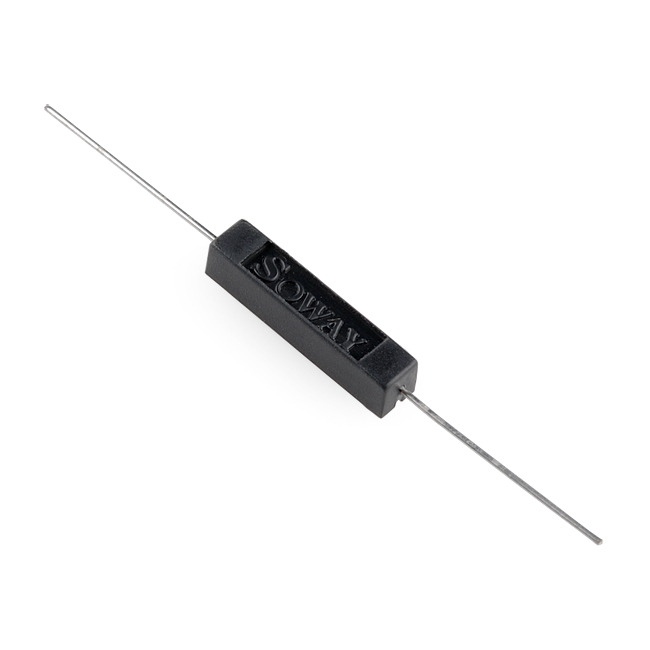

Reed Switch - Insulated
£1.90
£1.58
This is a small device called a reed switch. When the device is exposed to a magnetic field, the two ferrous materials inside the switch pull together and the switch closes. When the magnetic field is removed, the reeds separate and the switch opens. This makes for a great non-contact switch.
SKU
S-COM-10601
This is a small device called a reed switch. When the device is exposed to a magnetic field, the two ferrous materials inside the switch pull together and the switch closes. When the magnetic field is removed, the reeds separate and the switch opens. This makes for a great non-contact switch.
This reed switch can be populated easily on a PCB and is encapsulated so it's more durable than glass reed switches.
Need a custom board? This component can be found in SparkFun's À La Carte board builder. You can have a custom design fabricated with this component - and your choice of hundreds of other sensors, actuators and wireless devices - delivered to you in just a few weeks.
Features:
- Contact Form: SPST
- Operate Range: 20 AT to 25 AT
- Color: Black
- Mounting Style: PCB Mount
- Termination Style: Axial
- Contact Position: Normally Open
- Maximum Operating Temperature: + 105 C
- Minimum Operating Temperature: - 40 C
- Capacitance: 0.3 pF
- Current - Carry: 800mA (DC)
- Current - Switching: 350mA (AC), 500mA (DC)
- Voltage - Switching AC: 140 V
- Voltage - Switching DC: 200 V
- Power - Rated: 10W
- Operate Time: 1 ms
- Release Time: 1 ms
- Length - Overall: 1.590" (40.39mm)
- Size - Body: 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Documents:
