Carvey® Waste Board
£32.60
£27.17

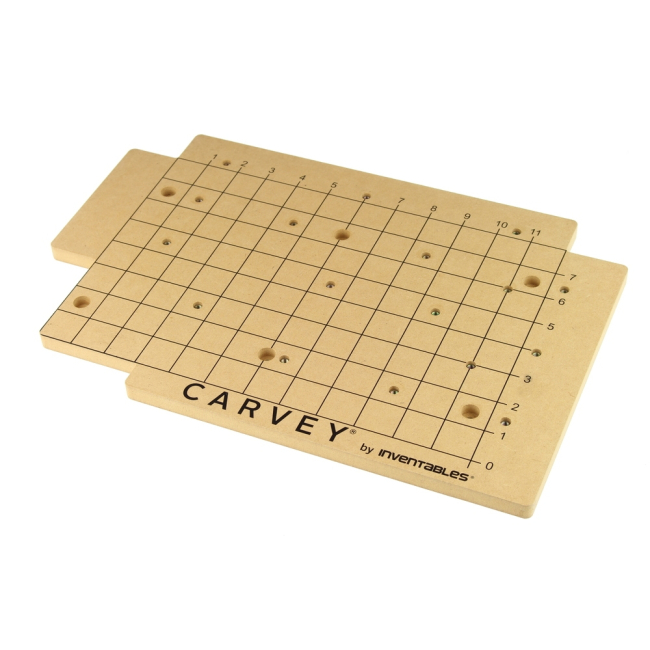

A replacement waste board for your Carvey®. The waste board or spoil board is the main cutting surface of your Carvey. The relatively soft MDF provides a sacrificial surface that allows for easy through-cutting operations without having to worry about damaging tooling or your machine.
SKU
IN-30676-01
The waste board or spoil board is the main cutting surface of your Carvey. The relatively soft MDF provides a sacrificial surface that allows for easy through-cutting operations without having to worry about damaging tooling or your machine. After extended use, the waste board will degrade to the point that it is no longer possible to properly clamp material for carving. This guide will show you how to properly change your Carvey’s waste board. You can find replacement parts for your Carvey on our website.
Waste Board Replacement
Step 1: Prepare
Shut down any active connection with Easel and unplug the USB cable from your computer and the Carvey. Power down the Carvey and unplug the AC power cable from the wall. Open the door and remove any material and clamps present. Remove any milling bit that may be present. Clean any excess dust from the inside of the Carvey with a vacuum and soft brush if necessary (see cleaning instructions.) Since you will be working with small parts that are easily lost, it’s a good idea to have a small bowl or other container for bolts at your workstation.
Step 2: Remove Smart Clamp and Waste Board
Remove any clamp bolts that are present on the Smart Clamp and move the Smart Clamp bracket to the side.
Locate the six cap-head bolts that secure the waste board to the base plate. Use a 3mm hex key to loosen and remove all six bolts and set them aside. Lift the waste board off the base plate.
Step 3: Install New Waste Board
Clean off the base plate so that there won’t be any debris stuck between the base plate and waste board once the latter is installed. Seat the waste board on the base plate and align the mounting holes with the threaded holes on the base plate. Thread in the cap head screws and tighten opposite bolts in sequence similar to tightening lug nuts to ensure that there is even pressure on the waste board. You can now replace the Smart Clamp and get back to carving!
Techical Data
| Material | MDF |
| Threaded Inserts | M5, installed |
| Thickness | 1/2'' (1.27cm) |
