Devastator Tank Mobile Platform
Regular Price
£74.60
Special Price
£0.00
£0.00
The Devastator uses high strength aluminum alloy which makes it extremely solid and durable. The high speedmotors and premium tracks also allows it to move swiftly everywhere. Whatsmore, it benefits from a high performance suspension and enjoys an outstanding mobility across even the toughest terrains.
SKU
DF-ROB0112

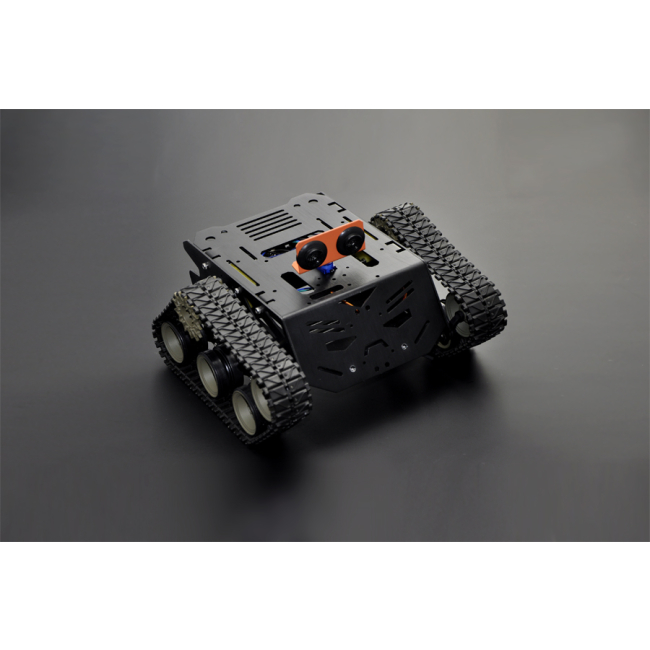

Devastator Tank Mobile Robot Platform
DFRobot proudly presents Devastator Tank Mobile Platform, our newest track mobile robot platform. It is fully compatible with most popular controllers in the market such as Arduino, Raspberry Pi and so on.
The Devastator uses high strength aluminum alloy which makes it extremely solid and durable. The high speed motors and premium tracks also allows it to move swiftly everywhere. Whats more, it benefits from a high performance suspension and enjoys an outstanding mobility across even the toughest terrains.
Users are able to add various sensors, servos, turntables and controllers (e.g. Romeo All-in-one, Raspberry Pi Model B+) with multiple mounting holes on the Devastator platform. It is perfect for hobbyists, educational, competitions and research projects.
TT Micro DC Geared Motor
This is a TT Micro DC Geared Motor with Back Shaft working at 6V with 160rpm. The TT motor series the most popular DC motors for DIY enthusiasts. It is designed to easily incorporate the DFRobot Encoder. These motors are inexpensive, small, easy to install, and ideally suited for use in a mobile robot.
SPECIFICATIONS
| Working Voltage： | 3-8V DC |
| Driver wheel diameter : | 43mm(1.69") |
| Maximum Speed: | 36cm/s |
| Motor Specification： | see Micro DC Geared Motor with Back Shaft |
| Size： | 225*220*108mm(8.86*8.66*4.25") |
| Weight： | 780g |
SHIPPING LIST
Devastator Tank Mobile Robot Platform x1
Notice: The Ultrasonic sensor and control board are not included in this kit. The new version of the product changed the hex socket screw to Philip's head screw which is easier to assemble. Besides,instruction manual has been updated.
MOTOR SPECIFICATIONS
| Operating Voltage Range: | 3~7.5V |
| Rated Voltage: | 6V |
| Max. No-load Current(3V): | 140 mA |
| Max. No-load Current(6V): | 170 mA |
| No-load Speed(3V): | 90 rpm |
| No-load Speed(6V): | 160 rpm |
| Max. Output Torque: | 0.8 kgf.cm |
| Max. Stall Current: | 2.8 A |
| Rated Load: | 0.2 kgf.cm |
| Operating Temperature: | -10~+60 ℃ |
| Storage Temperature: | -30~+85 ℃ |
| Motor Type: | 130 |
| Output Mode: | 2 sides |
| Gear Ratio: | 1:120 |
| Max. Diameter of Output Axle: | 5.4 mm |
| Net Weight: | 45 g |
