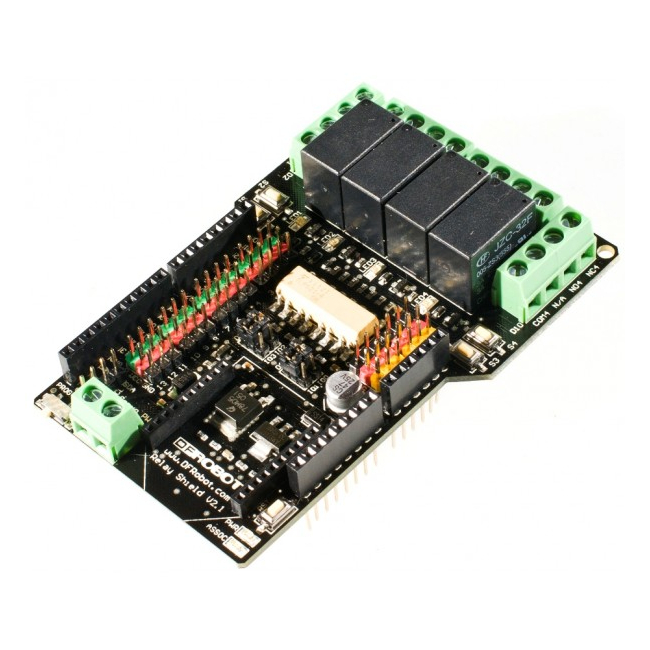

DFRobot - Relay Shield for Arduino V2.1

This DFRoobot relay shield  V2.1 is a completely new desgin which  is capable of controlling 4 relays.  The max switching power could be DC 90W or AC 360VA. It could be directly controlled by Arduino/DFRduino through digital IOs with external 9v supply. With buildin xbee type socket, it can be wirelessly controlled via Xbee/bluetooth/WPM.  Make it an ideal solution for home automation and robotics purpose.

New Features

• Compatible with Arduino UNO Rev3
• Each Relay has its own test button to test the connection
• Standard DFRobot 3 Pin out
• Stackable
• XBee I/O direct control

Specification

• Compatible with Arduino Rev3
• 4 buttons to test module
• LED status indicator of relay
• Support Xbee IO directly control
• Xbee socket for wireless communication
• Selectable digital IO pin for control(Default digital 2,7,8,10)
• 6 channels Analog IO & 13 channels Digital IO
• Up to 4 Relay with photo-coupled circuit
• Contact Rating  3A AC 120V / DC 24V
• Max Switching Voltage  AC 240V / DC 60V
• Max Switching Current  5A
• Max Switching Power  AC 360VA / DC 90W
• Electrical Life (Min)  100,000 Operations
• Mechanical Life (Min)  10,000,000 Operations
• Safety Standard(relay)  UL cUL TUV CQC
• Coil Working Voltage  9VDC
• Working temperature  -30℃ to +85℃
• Working temperature  40% - 85%
• Size:95x65mm

• Relay Shield for Arduino V2.1  (1 unit)

Documents

• Wiki Doc
• Schematics
• Board Layout
• Sample code
• HJR4102 datasheet
