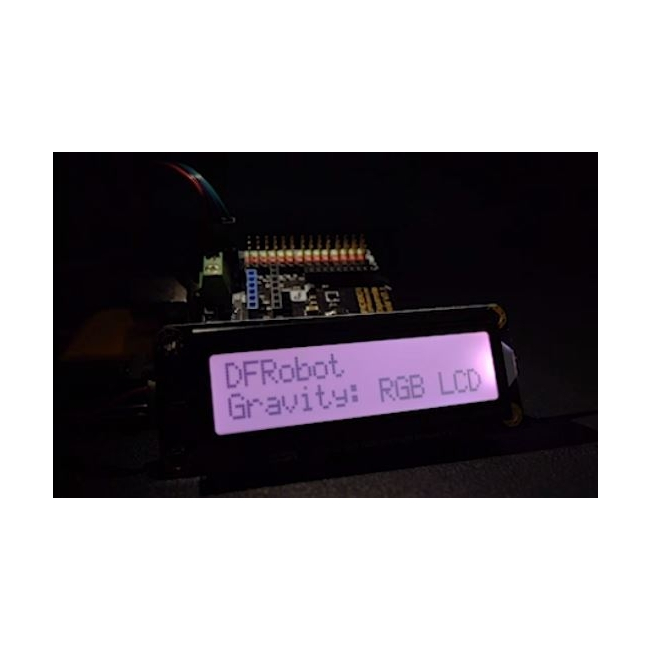

Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display

Have you been fed up with Black/White LCD screen? Do you want to try a colorful one? DFRobot I2C 16x2 Arduino LCD with RGB Backlight Display module will bring you a new experience about screen. It comes with RGB full color backlight, which has 16 million kinds of color.
Usually, Arduino LCD display projects will run out of pin resources easily, especially with Arduino Uno. And it is also very complicated with the wire soldering and connection. This I2C 16x2 LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will saves at least 4 digital / analog pins on Arduino. And Gravity interface make it easier to use with our Gravity: IO expansion shield.

SPECIFICATION

• Operating Voltage: 3.3V ~ 5.0V
• Operating Current: <0.8mA
• Display: 16 * 2
• Communication: IIC / I2C
• Backlight: RGB adjustable backlight (16 million)
• Operating Temperature: -20 to + 70 ℃
• Storage Temperature: -30 to + 80 ℃
• Dimension: 87.0 * 32.0 * 13.0mm/3.42 * 1.26 * 0.51 inches

DOCUMENTS

• Product WIKI
• More Documents

SHIPPING LIST

• Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display x1
• Gravity 4Pin IIC/I2C/UART Sensor Cable x1
