Qwiic JST Connector - SMD 4-pin (Horizontal)

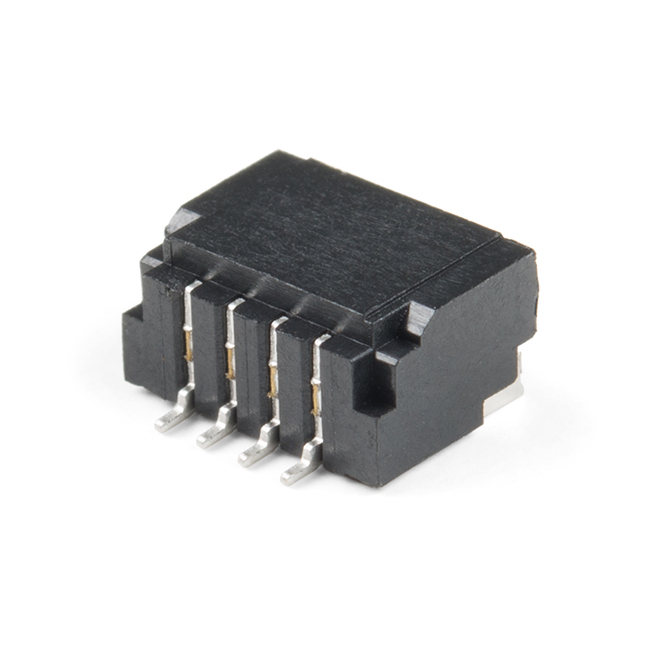

Here is a tiny 4-pin Qwiic 1mm JST connector. This connector is used on all our Qwiic based boards and can be used to create your own I²C based device compatible with the Qwiic system. Additionally, this connector will mate with all of our Qwiic cables with a solid lock.

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields, and cables that make prototyping faster and less prone to error. All Qwiic enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Documents:

• Datasheet
