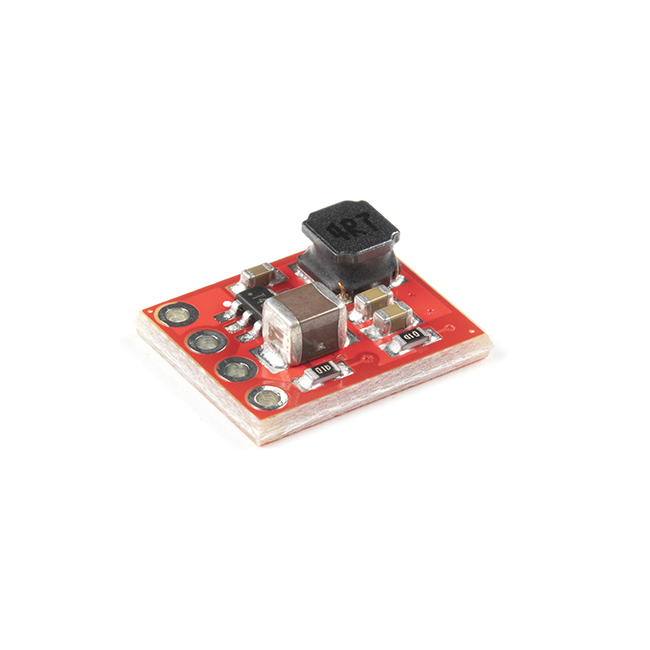

SparkFun BabyBuck Regulator Breakout - 3.3V (AP63203)

Who doesn't occasionally need power regulation? We certainly do so we've designed the SparkFun BabyBuck Regulator Breakout to help us with just such a task. Featuring the AP63203 from Diodes Inc this breakout board takes advantage of a 2A synchronous buck converter that has a wide input voltage range of 3.8V to 32V and fully integrated 125m high-side power MOSFET/68m lowside power MOSFET to provide high-efficiency step-down DC/DC conversion. All of this snuggled up in a low-profile TSOT26 package that's integrated into a 0.4in by 0.5in board. Unlike it's sibling the BabyBuck sacrifices power option flexibility for space. Don't worry though because you can still use the plated through holes for input and output power. With some simple right-angle headers you'll be up and running in no time. Frequency Spread Spectrum (FSS) reduces EMI and a proprietary gate driver scheme resists switching node ringing without sacrificing MOSFET turn-on and turn-off times which further erases high-frequency radiated EMI noise.
