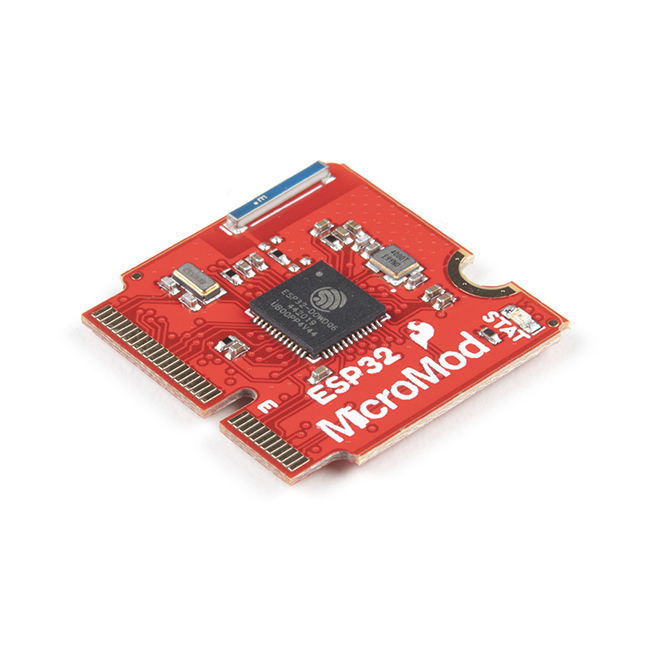

SparkFun MicroMod ESP32 Processor

The MicroMod ESP32 Processor Board combines Espressif's ESP32 with our M.2 connector interface to bring a processor board with reliable wireless capabilities into our MicroMod ecosystem. With the M.2 MicroMod connector, connecting your ESP32 Processor is a breeze. Simply match up the key on your processor's beveled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards). If you need to swap out your processor for a strong wireless option, make sure to check out the MicroMod ESP32!

The ESP32 includes a laundry list of functionality, including the dual-core Tensilica LX6 microprocessor, 240MHz clock frequency, 520kB internal SRAM, integrated WiFi transceiver and hardware accelerated encryption (AES, SHA2, ECC, RSA-4096). With this MicroMod processor board, you have access to 8 general use IO pins, dedicated analog, digital, and PWM pins, as well as all the fan favorites - SPI, I²C, UART, and SDIO. Add to that 16MB flash storage and sleep current of around 500µA, and you've got a perfect storm of versatility.

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Features:

ESP32 General Features:

• Dual-core Tensilica LX6 microprocessor
• Up to 240MHz clock frequency
• 520kB internal SRAM
• 128mbit/16MB flash storage
• Integrated 802.11 BGN WiFi transceiver
• 2.7 to 3.6V operating range
• 500µA sleep current under hibernation
• 10-electrode capacitive touch support
• Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)

Specific Peripherals made available on MicroMod ESP32:

• 1x USB dedicated for programming and debug
• 1x UART
• 2x I²C
• 1x SPI
• 7x GPIO
• 2x Digital Pins
• 2x Analog Pins
• 2x PWM
• Status LED
• VIN Level ADC

Additional peripherals are available but are shared on dedicated MicroMod pins.

Documents:

MicroMod ESP32 Processor Documentation:

• Schematic
• Eagle Files
• Hookup Guide
• Board Dimensions
• Datasheet (ESP32)
• Graphical Datasheet
• GitHub Hardware Repo

MicroMod Documentation:

• SparkFun MicroMod Interface v1.0 - Pinout
• SparkFun MicroMod Interface v1.0 - Pin Descriptions
• Getting Started with MicroMod
• Designing with MicroMod
• MicroMod Info Page
• MicroMod Forums
• SparkFun Eagle Libraries contains example footprints for the M.2 connector and SMD standoff
• M.2 MicroMod Connector Datasheet
• MicroMod Reflowable Standoff Datasheet

ESP32 Documentation:

• ESP32.com
• Espressif ESP32 Resource Page
