SparkFun Audio Jack Breakout

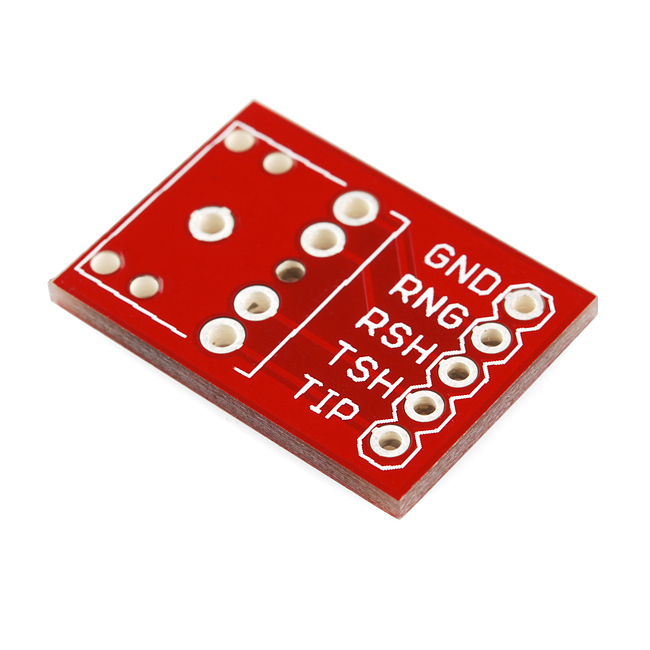

Simple breakout board for the 3.5mm audio jack. Use this breakout (shipped bare) to allow breadboard or SIP access to the super-common 3.5mm audio jack. All five pins are broken out.

Note: You get the bare PCB only, check below for the Audio Jack.

Documents:

• Schematic
• Eagle Files
• Fritzing Part
• GitHub Hardware Repo
