SparkFun microB USB Breakout

£2.50 £2.08
SKU
S-BOB-12035
Brand
SparkFun

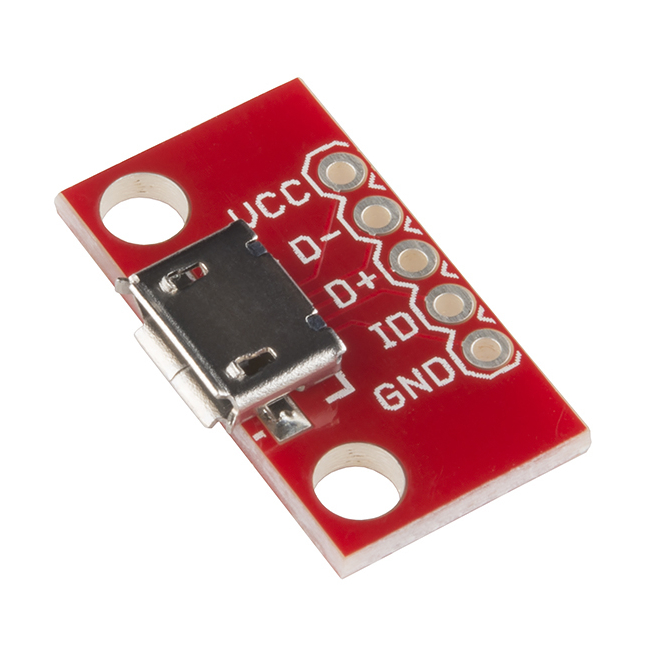

This simple board breaks out a micro-B USB connector's VCC, GND, ID, D- and D+ pins to a 0.1" pitch header. If you want to add the popular micro-B USB to your project, but don't want to put up with soldering the tiny connector, this is the board for you.

Features:

  • 0.8 x 0.45" (20.3 x 11.4mm)

Documents:

  • [Schematic](http://cdn.sparkfun.com/datasheets/BreakoutBoards/Breakout Board for USB microB.pdf)
  • [Eagle Files](http://cdn.sparkfun.com/datasheets/BreakoutBoards/Breakout Board for USB microB.zip)
  • GitHub
