SparkFun RGB LED Breakout - WS2812B
£4.50
£3.75

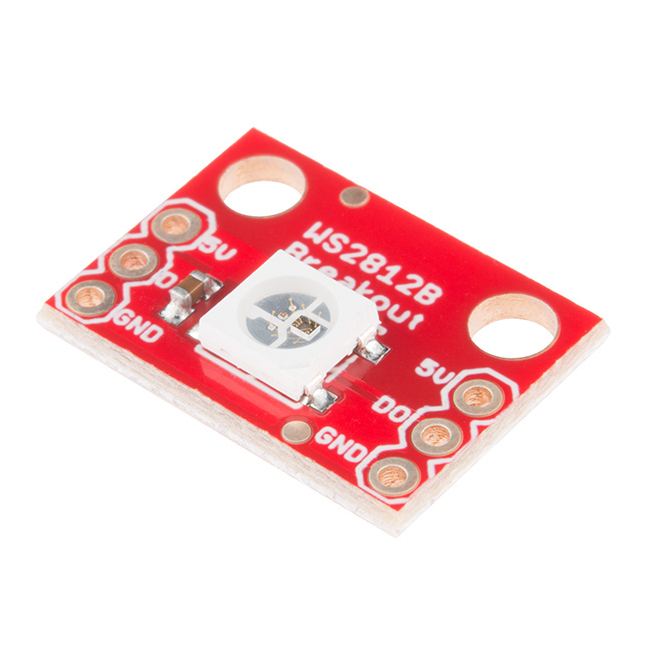

This is a breakout board for the WS2812B RGB LED. The WS2812B (or "NeoPixel") is actually an RGB LED with a WS2811 built right into the LED! All the necessary pins are broken out to 0.1" spaced headers for easy bread-boarding. Several of these breakouts can even be chained together to form a display or an addressable string.
SKU
S-BOB-13282
This is a breakout board for the WS2812B RGB LED. The WS2812B (or "NeoPixel") is actually an RGB LED with a WS2811 built right into the LED! All the necessary pins are broken out to 0.1" spaced headers for easy bread-boarding. Several of these breakouts can even be chained together to form a display or an addressable string.
Documents:
- Schematic
- Eagle Files
- Hookup Guide
- All About LEDs
- Datasheet (WS2812B)
- GitHub (Design Files & Example Code)
