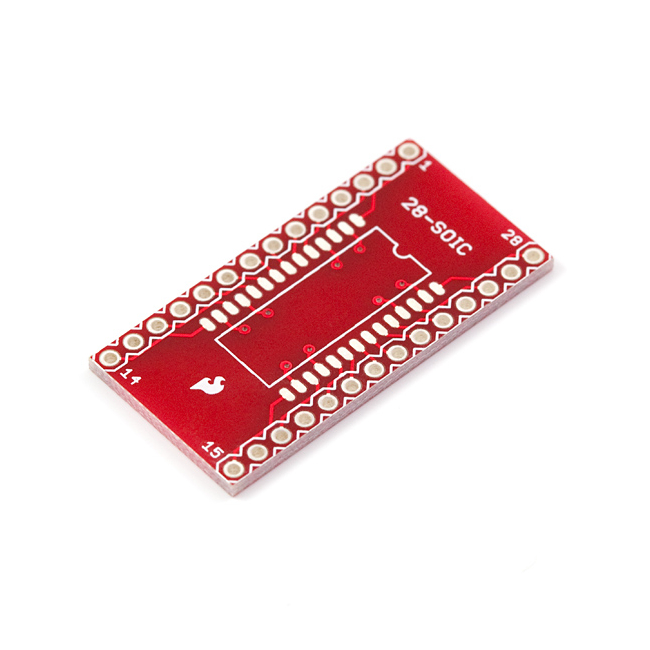

SparkFun SOIC to DIP Adapter - 28-Pin

Low-cost basic SOIC break out boards. These are custom PCB boards that interface standard SOIC devices to standard .1" headers.

Pad layout fits all standard SOIC devices. 28-SOIC Standard .6" spacing between pins. Will fit directly into a standard width (600 mil) DIP socket. For wide ICs (memories, drivers, 74s, etc). 40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.

Features:

• 0.7x1.50"

Documents:

• Schematic
• Eagle Files
• GitHub (Design Files)
