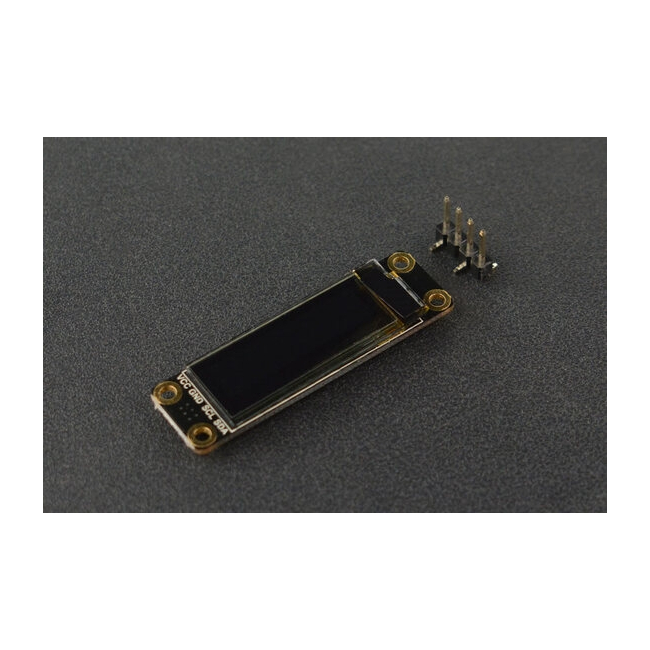

DFROBOT - Monochrome 0.91”128x32 I2C OLED Display with Chip Pad
£9.05
£7.54
This OLED display module uses the SSD1306 drive chip, has 128x32 self-illuminating white pixels, and adopts the back chip-mounting pad design. Small size, the length is 41mm and the width is only 12mm. With its small size, simple wiring, and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.
SKU
DF-DFR064
INTRODUCTION
This OLED display module uses the SSD1306 drive chip, has 128x32 self-illuminating white pixels, and adopts the back chip-mounting pad design. Small size, the length is 41mm and the width is only 12mm. With its small size, simple wiring, and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.
The display module adopts a high-contrast, low-power OLED display. Full-screen lighting consumes approximately 25mA (3.3V) 25mA (5V) and full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V). It is compatible with controllers such as Arduino UNO, Leonardo, ESP32/ESP8266, FireBettle-M0, and so on. Internal power-on reset processing, I2C communication methods and the chip-mounting pad, so that your welding line will be more convenient and simpler. The module has an ultra-narrow PCB design that is more flexible to match more applications.
Note: Turn the pixels off when you are not using the display to prevent the use of some pixels too long to darken them, which will cause the brightness uniformity problem.
| Monochrome I2C OLED Display Selection Guide | |||
| Product Name | 0.91" 128x32 OLED-A | 0.91" 128x32 OLED-B | 0.96" 128x64 OLED |
| SKU | DFR0647 | DFR0648 | DFR0650 |
| Chip | SSD1306 | SSD1306 | SSD1306 |
| Voltage Input | 3.3/5V | 3.3/5V | 3.3/5V |
| Resolution | 128x32 | 128x32 | 128x64 |
| Interface | I2C | I2C | I2C/SPI |
| Welding Method | Chip-mounting pad on the back | Ordinary welding hole | Ordinary welding hole |
| Size | 41x12 mm | 33x20 mm | 30x30 mm |
| Price | $9.90 | $9.90 | $14.50 |
| Features |
1. Small size, ultra-narrow design
2. Display 2 rows of 16 pixel characters
3. Chip-mounting pad
|
1. Small size
2. Display 2 rows of 16 pixel characters
|
1. Display 4 rows of 16 pixel characters
2. Support I2C/SPI
3. Iron frame to protect the screen
|
| Recommended | Suitable for users with certain hands-on ability to build up applications requiring space and appearance | Suitable for entry-level makers | Applicable for users who want to display much content with high-speed SPI refresh |
