USB A and C Power Delivery (PD) Wall Adapter - 65W

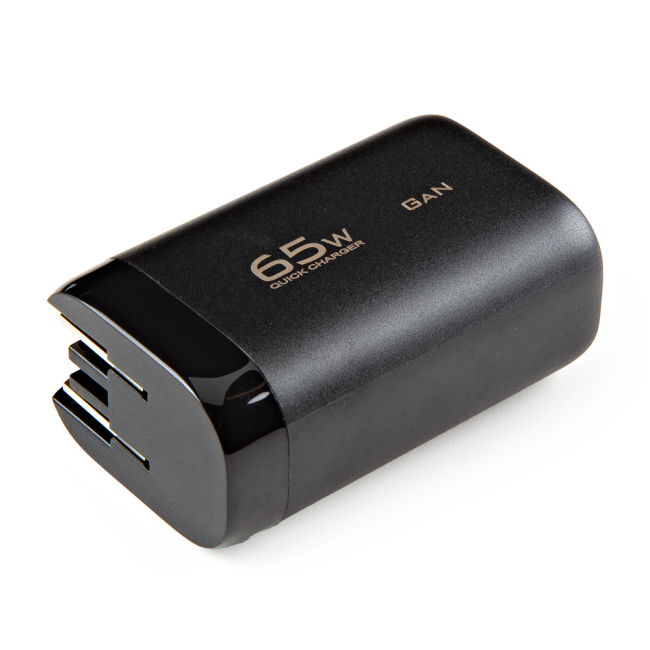

This is a 65W power delivery (PD) wall adapter. The power supply has a maximum input of 240VAC, 1.5A. It has one USB-A and two USB-C ports. The adapter uses an internal primary current fuse, inrush limiting for input protection.

Features:

• Voltage: 100-240VAC
• Line Frequency: 50~60Hz
• Current: 1.5A Max
• Line Regulation: ±5% (typical)
• Ripple: 200mV p-p (Max)
• Turn On Delay Time: 3S (Max)
• Rise Time: 40mS (Max)
• Hold-Up Time: 5mS (Max)
• Standby Power: 0.1W
• DC Output Plug: USB Type-C x2 +USB-A
• Single Port Working:
  • USB C1/C2 output (65W Max)
  • USB A output (30W Max)
• Two Ports Working:
  • USB C1+C2 output (45W+20W)
  • USB C1+A output (45W+18W)
• Three Ports Working:
  • USB C1+C2+A output (65W Max)
• Topology: Switching Flyback
• Dielectric Withstand: 3000VAC Primary-Secondary
• Leakage Current: 0.25mA
• Operating Temperature: 0°C to +40°C
• Storage Temperature: -20°C to +80°C
• Relative Humidity: Operating: 10%(0℃)~90%(40℃)RH 72Hrs,Full load, Normal operating
• Cooling: Natural Convection Cooling

Documents:

• Datasheet
• Dimensional Drawing
