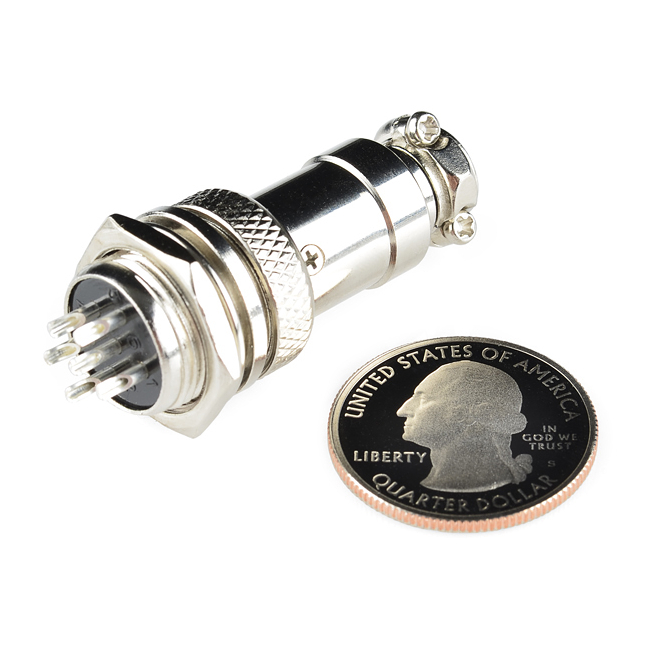

6-Pin Chassis Connector - Panel Mount (male and female)

This 6-pin connector and plug set is great when you need to create a robust connection for signal or power. This product consists of two separate parts the panel-mount jack and the mating plug. The plug has a ring which screws to the panel-mount connector ensuring a solid connection that won't pull off.The connector uses 6 solder-cup connections for easy wiring. The panel-mount side mounts in a 15.5mm hole with the aid of a lock-washer and nut (both included). The jack uses solder-cup terminals as well and comes apart for easy assembly. It even has a strain relief clamp on the end which clamps down to 5mm for a sturdy connection. Pins are clearly labeled on both jack and connector.Documents:DatasheetProduct Video
