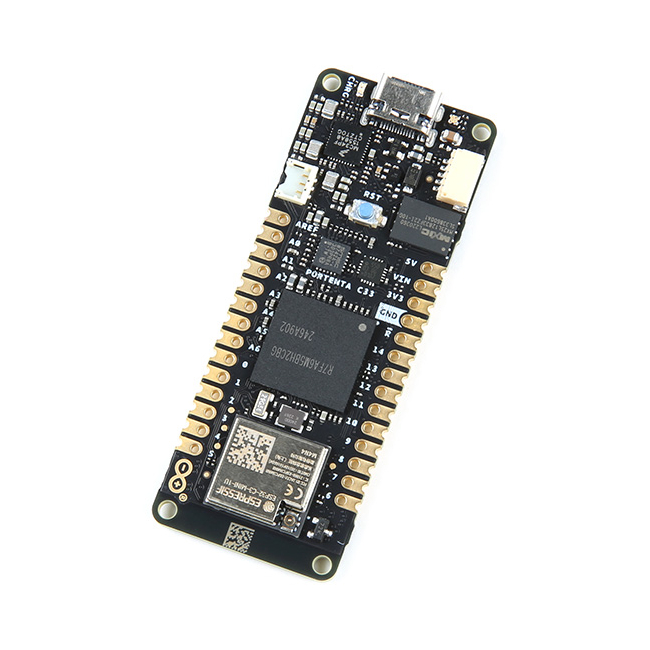

Arduino Portenta C33

Ideal to develop cost-effective, real-time applications, Portenta C33 features the Arm® Cortex®-M33 microcontroller by global leader Renesas and supports MicroPython and other high-level programming languages. Thanks to its onboard Wi-Fi® and Bluetooth® Low Energy connectivity, the module stands out as an ideal solution for IoT gateways, remote control systems, fleet management and process tracking.

While its secure element guarantees industrial-grade security at the hardware level, the Portenta C33 is also able to perform over-the-air firmware updates with Arduino IoT Cloud or other third-party services.

Quickly deploying AI-powered projects becomes quick and easy with Portenta C33, by leveraging a vast array of ready-to-use software libraries and Arduino sketches available, as well as widgets that display data in real time on Arduino IoT Cloud-based dashboards. What’s more, the module’s form factor is compatible with the Portenta and MKR ranges and features castellated pins – ready for automatic assembly lines and more efficient connections to other components.

Features:

• Microcontroller: Renesas R7FA6M5BH2CBG Arm® Cortex®-M33:
  • 1x Arm® Cortex®-M33 core up to 200 MHz
  • 512 kB onboard SRAM
  • 2 MB onboard Flash
  • Arm TrustZone®
  • Secure Crypto Engine 9
• External Memories: 16 MB QSPI Flash
• USB-C: USB-C High Speed
• Connectivity:
  • 100Mb Ethernet interface (PHY)
  • WiFi
  • Bluetooth® Low Energy
• Interfaces:
  • CAN
  • SDCard
  • ADC
  • GPIO
  • SPI
  • I2S
  • I2C
  • JTAG/SWD
• Security: NXP® SE050C2 Secure Element
• Operating Temperatures: -40 °C to +85 °C (-40 °F to 185 °F)
• Dimensions: 66.04mm x 25.40mm

Documents:

• User Manual
• Datasheet
• Schematics
• Pinout
• Arduino Cloud
• Full Documentation
