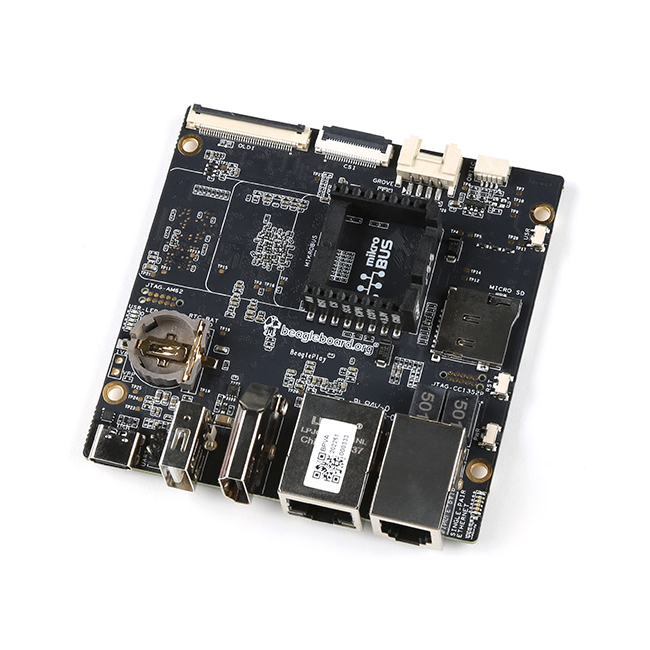

BeaglePlay

BeaglePlay is an open-source single board computer designed to simplify the process of adding sensors, actuators, indicators, human interfaces, and connectivity to a reliable embedded system. It features a powerful 64-bit, quad-core processor and innovative connectivity options, including WiFi, Gigabit Ethernet, sub-GHz wireless, and single-pair Ethernet with power-over-data-line. With compatibility with 1,000s of off-the-shelf add-ons and a customized Debian Linux image, BeaglePlay makes expansion and customization easy. It also includes ribbon-cable connections for cameras and touch-screen displays, and a socket for a battery-backed real-time-clock, making it ideal for human-machine interface designs.

BeaglePlay is built around Texas Instruments AM62x Sitara™ Processors which is a Quad-Core Arm® Cortex®-A53 Human-machine-interaction SoC. It comes with 2GB DDR4 RAM, 16GB eMMC storage, Full size HDMI, USB-A host port, USB-C power & connectivity port, serial debug interface, and much more.

The BeaglePlay also includes a Qwiic connector. The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Features:

• Processor: TI AM6254 (multicore A53s with R5, M4s and PRUs)
• PMIC: TPS6521901
• Memory: 2GB DDR4
• Storage: 16GB eMMC
• WiFi:
  • PHY: WL1807MOD (roadmap to next-gen TI CC33XX WiFi 6 & BLE)
  • Antennas: 2.4GHz & 5GHz
• BLE/SubG:
  • CC1352P7 M4+M0 with BeagleConnect firmware
  • BeagleConnect Wireless enabled
  • Antennas: 2.4GHz & SubG IEEE802.15.4 software defined radio (SDR)
• Ethernet:
  • PHY: Realtek RTL8211F-VD-CG Gigabit Ethernet phy
  • Connector: integrated magnetics RJ-45
• Single-pair Ethernet:
  • BeagleConnect Wired enabled
  • PHY: DP83TD510E 10Mbit 10BASE-T1L single-pair Ethernet phy
  • Connector: RJ-11 jack
  • Power (PoDL): Input: N/A (protection to 12V), Output: 5V @ 250mA
• USB type-C:
  • PD/CC: None, HS shorted to both sides
  • Power: Input: 5V @ 3A, Output: N/A (USB-C DRP Not supported)
• HDMI:
  • Transmitter: IT66121
  • Connector: full-size
• Other Connectors:
  • microSD
  • USB 2.0 type-A (480Mbit)
  • mikroBUS connector (I2C/UART/SPI/MCAN/MCASP/PWM/GPIO)
  • Grove connector (I2C/UART/ADC/PWM/GPIO)
  • QWIIC connector (I2C)
  • CSI connector compatible with BeagleBone AI-64, Raspberry Pi Zero / CM4 (22-pin)
  • OLDI connector (40-pin)

Documents:

• Datasheet
