Dagu - 75:1 Metal Gearmotor w/ Magnetic Encoder (6VDC / 133rpm)
£15.60
£13.00

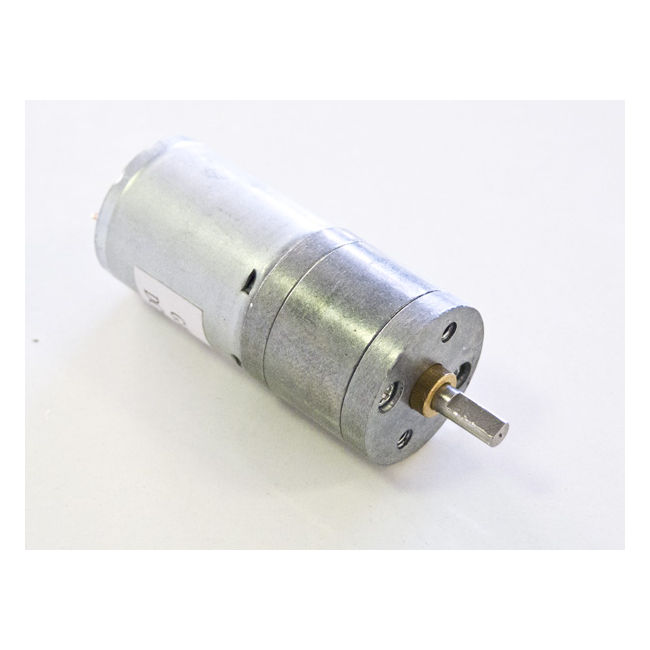

Dagu - 75:1 Metal Gearmotor with Magnetic Encoder (6VDC / 133rpm). This is a powerful DC motor fitted with a 75:1 gearbox. The gears are all steel and the output shaft is 4mm diameter. These motors now come with a Quadrature Magnetic encoder that comes mounted on the output shaft to provide accurate speed measurement and control. They are compatible with the Wild Thumper Robots and are suitable for any project requiring a fast, robust DC motor.
SKU
DAGU-RS003+EN75
Dagu - 75:1 Metal Gearmotor with Magnetic Encoder (6VDC / 133rpm)
This is a powerful DC motor fitted with a 75:1 gearbox. The gears are all steel and the output shaft is 4mm diameter.
These motors now come with a Quadrature Magnetic encoder that comes mounted on the output shaft to provide accurate speed measurement and control.
They are compatible with the Wild Thumper Robots and are suitable for any project requiring a fast, robust DC motor.
Specifications:
- Voltage: 6V (7.5V max)
- No load current: 350mA
- Stall current: 5.5A
- Stall torque: 8.8Kg/cm
- Motor RPM: 10,000 +/- 5%
- RPM after Gear Reduction: 133 +/- 5%
- 1x Quadrature Magnetic Wheel Encoder included
