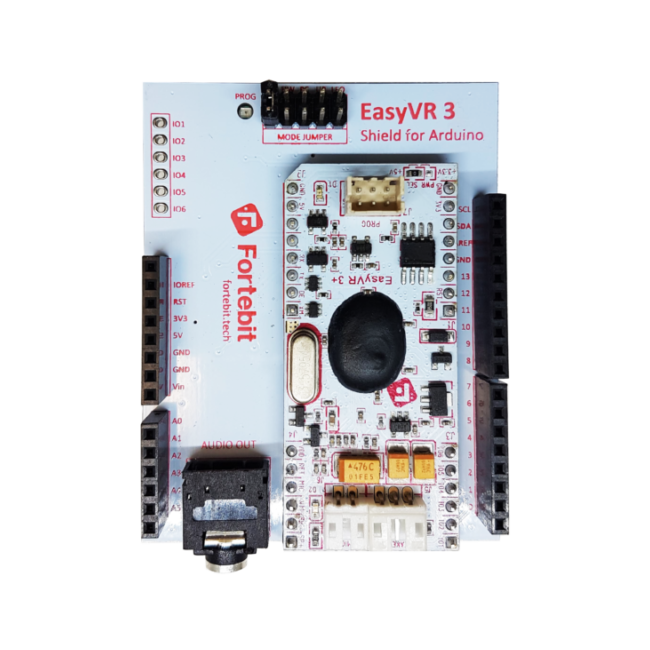

main product photo

EasyVR 3 Plus Shield for Arduino

As low as £45.50 £37.92

Be the first to review this product
SKU
TG-VR-SHL+MOD3
Brand
easyVR
easyVR
Quick Overview
The EasyVR 3 Plus Shield for Arduino is compatible with any Arduino board. It includes the EasyVR 3 Plus module AND the Arduino Shield adapter. EasyVR 3 Plus is a multi-purpose speech recognition module designed to easily add versatile, robust and cost effective speech recognition capabilities to almost any application. The EasyVR 3 Plus module can be used with any host with a UART interface powered at 3.3V – 5V, such as PIC and Arduino boards. Some application examples include home automation, such as voice-controlled light switches, locks, curtains or kitchen appliances, or adding “hearing” to the most popular robots on the market. The EasyVR Shield 3 is an adapter board for the EasyVR 3 module, designed to simplify its use among the Arduino community.

Free UK Shipping

On Orders Over 600£



Secured and trusted checkout with

Related Products
Check items to add to the cart or
Customize EasyVR 3 Plus Shield for Arduino
EasyVR 3 Plus   + £32.60 £27.17
EasyVR Arduino Shield only (NO MODULE)   + £12.90 £10.75
Ship to Calculate Shipping Cost

* Required Fields

Your Customization
EasyVR 3 Plus Shield for Arduino
EasyVR 3 Plus Shield for Arduino

In stock

£45.50 £37.92

Summary

    EasyVR Shield 3 Features

    The Shield is compatible with any Arduino board using UNO-R3 Shield headers, running at either 3.3V or 5V levels, by using the IOREF pin to select the EasyVR operating voltage.

    It is also backward compatible with earlier Arduino boards that don’t have the IOREF pin, which are using 5V I/O levels by default.

    If your board does not have the IOREF pin but it is running at 3.3V, you can still operate the EasyVR Shield 3 correctly if you manually connect pins IOREF and 3V3 together, for example with a jumper wire.

    The board comes with separate Arduino stackable headers for the Shield interface. The EasyVR 3 module is also provided separately.

      Compatible with Arduino boards that have the 1.0 Shield interface (UNO R3) and legacy boards including, but not limited to:

      Arduino Duemilanove

      Arduino Uno

      Arduino Mega

      Arduino Leonardo

      Arduino Due

    Supports 5V and 3.3V main boards through the IOREF pin

    Supports direct connection to the PC on main boards with a separate USB/Serial chip and a special software-driven “bridge” mode on boards with only native USB interface, for easy access by the EasyVR Commander Enables different modes of serial connection and also flash updates to the embedded EasyVR module (through the Mode Jumper)

    Supports remapping of serial pins used by the Shield (in SW mode) Provides a 3.5mm audio output jack suitable for headphones or as a line out

    MikroBUS Compatible

    EasyVR 3 Plus can be easily plugged into a solder-less breadboard or standard prototyping board, and it is compatible with the mikroBUS™ specifications (see www.mikroe.com/mikrobus).

    Separate male headers are provided inside the package, along with a microphone cable assembly and speaker wires (loudspeaker not included).

    EasyVR 3 Device Features

      SonicNet™ technology for wireless communications between modules or any other sound source (Audio CD, DVD, MP3 Player).

      Up to around 21 minutes of pre-recorded sounds or speech .

      Up to about 120 seconds of live message recording and playback .

      Real-time Lip-sync capability.

      DTMF tone generation.

      Differential audio output that directly supports 8Ω speakers.

      Easy-to-use Graphical User Interface to program Voice Commands and audio.

      Standard UART interface (powered at 3.3V – 5V).

      Simple and robust documented serial protocol to access and program through the host board.

      6 General purpose I/O lines that can be controlled via UART commands.

    SD Commands

    SD/SV commands are entirely user-defined and they are intended to work only with the voice that trained them. SD only tries to match the trained words, while SV also tries to match the characteristics of the voice and to prevent use by unknown people (voice password). Up to 64 SD commands available starting with firmware Revision 5 included in EasyVR Commander v3.13.0 .

    SI commands are meant to work with any people in the same language group and do not require training. A few pre-defined commands can be directly used, while additional commands can be created with a QuickT2SI™ Lite license (sold separately).

    At the maximum compression rate.

    Starting with firmware Revision 1.

    Starting with firmware Revision 4.
