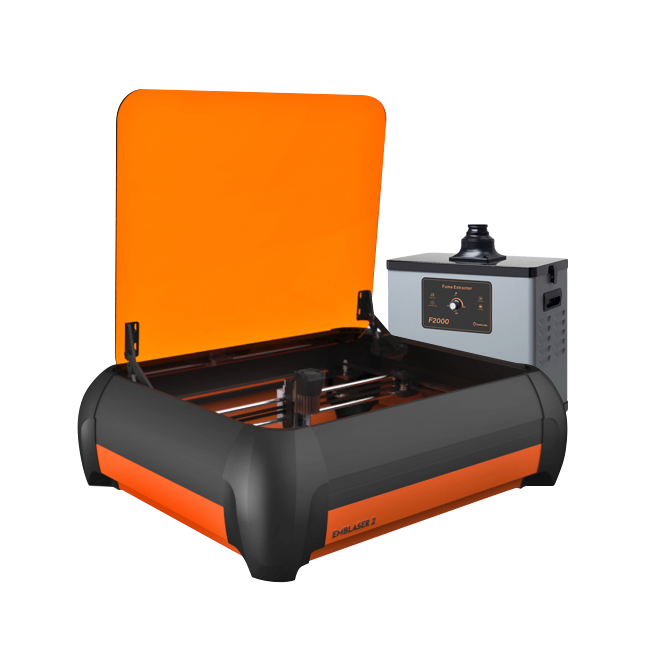

Emblaser 2 Desktop Laser Cutter & Engraver + Fume Filtration System

From £3,281.20 £2,734.34

To £3,285.70 £2,738.09

UK WAREHOUSE 0 in stock, available to order.
SKU
DL-EMBLASER2BUN
Darkly Labs
Customize Emblaser 2 Desktop Laser Cutter & Engraver + Fume Filtration System
Emblaser 2 Desktop Laser Cutter & Engraver   + £2,537.30 £2,114.42
F2000 Fume Extractor For Emblaser 2   + £743.90 £619.92

* Required Fields

Your Customization
Emblaser 2 Desktop Laser Cutter & Engraver + Fume Filtration System
Emblaser 2 Desktop Laser Cutter & Engraver + Fume Filtration System

In stock

£3,281.20 £2,734.34

Summary

    Emblaser 2 Desktop Laser Cutter & Engraver

    Fully assembled Emblaser 2, Software, Tool and Lens Cleaning Kit, 110-240 Volt Power Supply with an EU plug, all required leads, fume extraction hose & external fume filtration system.


    Fume Filtration System for the Emblaser 2.

    Use you Emblaser indoors without needing to vent fumes out through a window. The Filter system is very quiet and uses a set of filters containing activated carbon to remove visible fumes. Please Note: Some odour may still be present after filtration depending on the material.

    Why is the Emblaser 2 so revolutionary?

    True 3D Cutting and Engraving

    One of the incredible features of the Emblaser 2 is true 3D cutting & engraving. You can automatically adjust the height of the laser while cutting and engraving to gain an extra dimension of control.Multi PassTMP-01Cut through thicker materials by setting your laser to automatically lower with multiples passes. Create 3D engravings with depth or automatically adjust the sharpness of your laser to create sharp lines or soft fills.

    Larger Workspace

    Working on larger materials is now possible with a 500mm x 300mm (19.66″ x 11.81″) work area. The maximum material height has also been increased to 50mm (1.97″)

    More Laser Power

    Our 2nd Generation Laser Unit and electronics set a new standard for power and efficiency.

    WiFi & USB Connectivity

    Use your Emblaser 2 wirelessly or enjoy the reliability of a direct USB connection. The choice is yours.

    Workspace Camera

    An In-built camera shows a live view of the workspace allowing easy alignment of materials.

    Material Ignition Alert

    ‘Material Ignition Alert’, or ‘MIA’ constantly monitors for the potential ignition of a material, a situation that may arise in any laser cutter. If detected, MIA places the machine is a safety mode and sounds a warning alarm.

    Air-Assist

    Air-Assist increases cutting performance and creates cleaner cuts by injecting a stream of high pressure air into the cutting region. Traditionally only available in industrial machines, the Emblaser 2 comes ready to accept our air-assist accessory.

    Fume Extraction / Filtering

    Clearing fumes is critical to maintaining clean optics and optimal cutting. Use the inbuilt fume extractor to vent fumes outdoors or add the our Fume Filter System to safely filter fumes for complete indoor use.

    Commonly Used Materials

    MaterialThicknessEngraveCut
    Fabric - Cotton3mmYY
    Fabric - Felt (All colors except white)6mmNY
    Leather - Brown Vegetable Tanned (Treatment & color dependant. Air-Assist recommended.)4mmYY
    Paper/Card - Corrugated Cardboard6mmYY
    Paper/Card - Pasteboard2.6mmYY
    Paper/Card - Plain Paper (Any colour)3mmYY
    Plastic - Acrylic Black5mmYY
    Plastic - Acrylic Green, Red Yellow3mmYY
    Plastic - Acrylic Translucent (tinted)3mmYN
    Plastic - Acrylic Blue3mmYN
    Plastic - Acrylic Transparent & White3mmNN
    MaterialThicknessEngraveCut
    Plastic - Polypropylene (Air-Assist recommended.)3mmYY
    Plastic - Styrene1.5YY
    Wood - Birch Plywood6mmYY
    Wood - Balsa10mmYY
    Wood - Hardwood Oak3.8mmYY
    Wood - MDF6mmYY
    Anodised Aluminium6mmYN
    Slate6mmYN
    Corkboard (Air-Assist required.)3mmYY
    Rubber (Air-Assist recommended.)2mmYY

    Software thats powerful and easy

    Work How You Want

    Work with the software you are familiar with to create your designs. LightBurn will import all standard formats from software such as Adobe Illustrator, Photoshop, Inkscape, Corel Draw etc.

    Cut and Engrave Easily

    Precisely cut out your artwork or create incredible engravings from your photos all in the one place. LightBurn gives you full control over the Emblaser 2.

    Wondows, OSX, PC Tablet

    LightBurn is fully compatible with both Windows and OSX. Run it on your favourite computer or laptop, even over Wifi!

    Technical Specifications

    External Dimensions540mm x 720mm x 200mm (21.25" x 28.35" x 7.8")
    Material Capacity500mm x 300mm x 50mm (19.66" x 11.81"x 1.97")
    FocusFactory pre-focused
    Laser Unit TypeSolid-State Diode Equivalent to 15-20watt CO2 laser
    ClassificationClass I The safest laser device rating available. Hardware
    3D Cutting & Engraving, fully software controlled.
    Camera for material alignment.
    Wifi & USB Connectivity
    Fume Extraction, built-in.
    Internal Workspace Lighting
    Fume Filtration System
    External Fume Filtration System
    Air-Assist System
