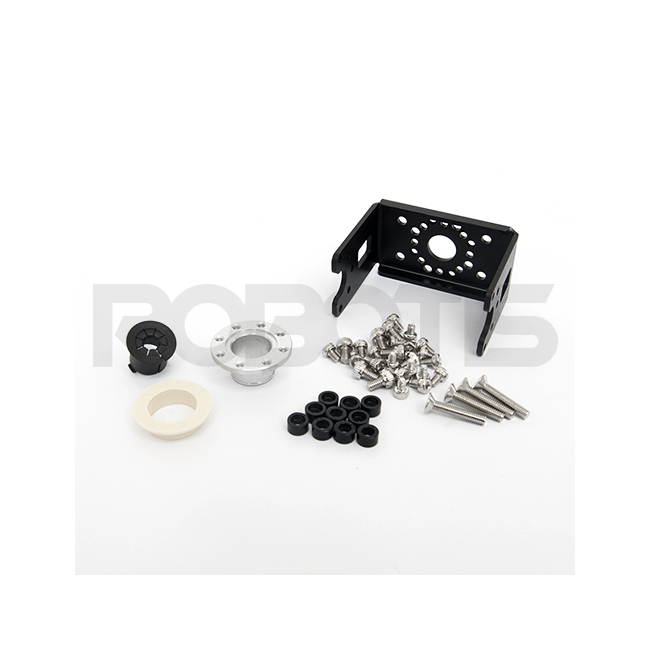

FR12-H101K Set

Hinge frame set for DYNAMIXEL X-series 430 models.

Hinge frame and Idler Bearing set are included.

Included

• 1 x FR12-H101K Frame
• 1 x Bearing HN12-I101 Set
• 4 x Bolt FHS M2.5x14
• 18 x Wrench Bolt WB M2x3
• 8 x Wrench Bolt M2.5x4
• 10 x Spacer Ring

Assembly Drawing

Downloads

Dynamixel X Compatibility Chart : Click Here

Download Drawing : Click Here

* Cannot be assembled with DYNAMIXEL MX series
