Infrared Thermometer - MLX90614

Melexis' MLX90614ESF-BAA is an infrared thermometer designed for non-contact temperature sensing. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614's high accuracy and resolution. It has a huge number of applications including body temperature measurement and movement detection.

The MLX90614 provides two methods of output: PWM and SMBus (i.e. TWI, I²C). The 10-bit PWM output provides a resolution of 0.14°C, while the TWI interface has a resolution of 0.02°C. The MLX90614 is factory calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to 382.2°C for the object temperature. The measured value is the average temperature of all objects in the Field Of View of the sensor. The MLX90614 offers a standard accuracy of 0.5°C around room temperatures.

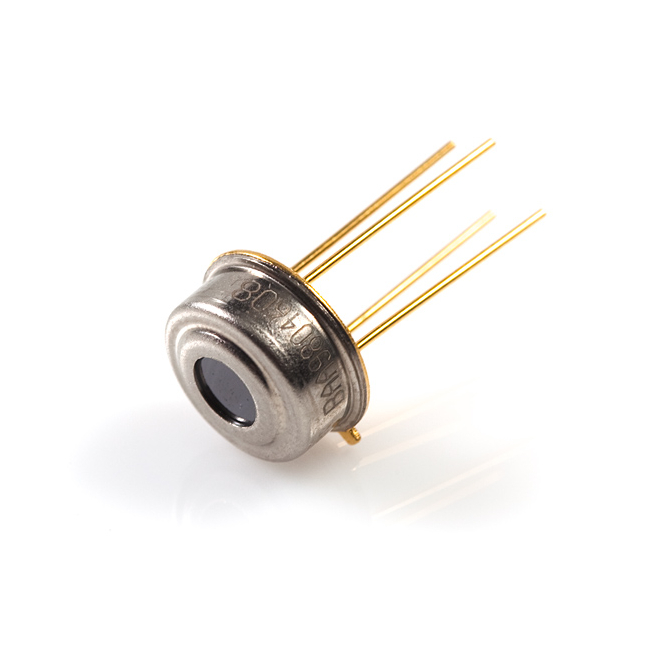

This device comes in an industry standard TO-39 package. We're carrying the 3V version of this sensor.

Features:

• Small size, low cost
• Easy to integrate
• Factory calibrated in wide temperature range:
  • -40 to +85°C for sensor temperature
  • -70 to +380°C for object temperature
• SMBus compatible digital interface
• Customizable PWM output for continuous reading
• High accuracy of 0.5°C over wide temperature range (0 to +50°C for both Ta and To)
• Measurement resolution of 0.02°C
• Single and dual zone versions
• Simple adaptation for 8 to 16V applications
• Power saving mode
• Different package options for applications and measurements versatility
• Automotive grade

Documents:

• Hookup Guide
• Datasheet
• MLX90614 Product Information
• bildr blog - MLX90614
• GitHub (Library)
