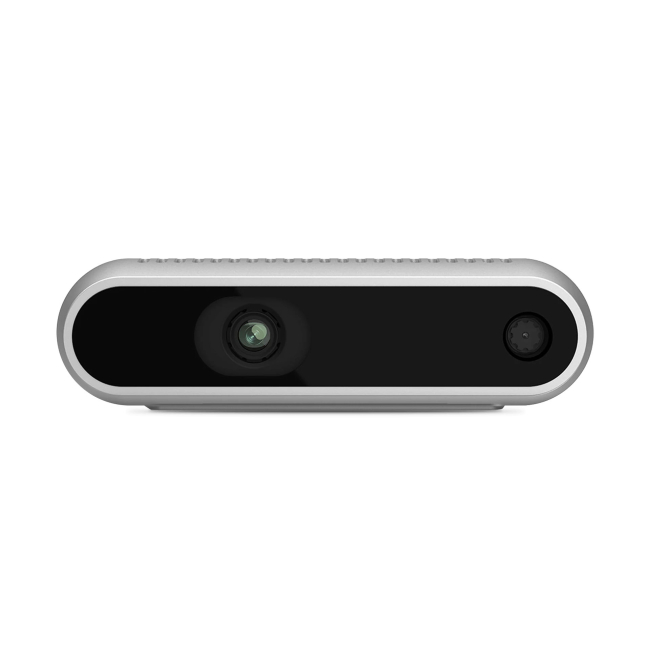

RealSense™ Depth Camera D435if
£451.08
£375.90
The D435if is part of the new D400f family that was first introduced by the D435f camera. It adds an IMU to the D435f camera, allowing applications to refine the depth awareness in any situation where the camera moves. D435if features our widest field of view, along with a global shutter and IMU for high-speed depth applications. The addition of an IR Pass Filter over the lenses resolves repetitive pattern and false object detection due to light reflections.
SKU
INT-D435IF
| Use environment: | Indoor/Outdoor |
| Image sensor technology: | Global Shutter |
| Ideal Range: | .3 m to 3 m |
| Depth | |
| Depth Technology: | Stereoscopic |
| Minimum Depth Distance (Min-Z) at Max Resolution: | ~28 cm |
| Depth Accuracy: | <2% at 2 m |
| Depth Field of View (FOV): | 87° × 58° |
| Depth Output Resolution: | Up to 1280 × 720 |
| Depth Frame Rate: | Up to 90 fps |
| Filter | |
| Depth Filter: | IR Pass |
| RGB Filter: | IR Cut |
| RGB | |
| RGB Frame Rate: | 30 fps |
| RGB Frame Resolution: | Up to 1920 × 1080 |
| RGB Sensor Technology: | Rolling Shutter |
| RGB Sensor FOV (H x V): | 69° × 42° |
| RGB Sensor Resolution: | 2 MP |
| Major Components | |
| Camera Module: | RealSense Module D430 + RGB Camera |
| Vision Processor Board: | RealSense Vision Processor D4 with an IMU |
| Physical | |
| Form Factor: | Camera Peripheral |
| Length x Depth x Height: | 90 mm × 25.8 mm × 25 mm |
| Connectors: | USB‑C* 3.1 Gen 1* |
| Mounting Mechanism: | – One 1/4‑20 UNC thread mounting point – Two M3 thread mounting points |
| Manufacturer | Intel |
|---|
