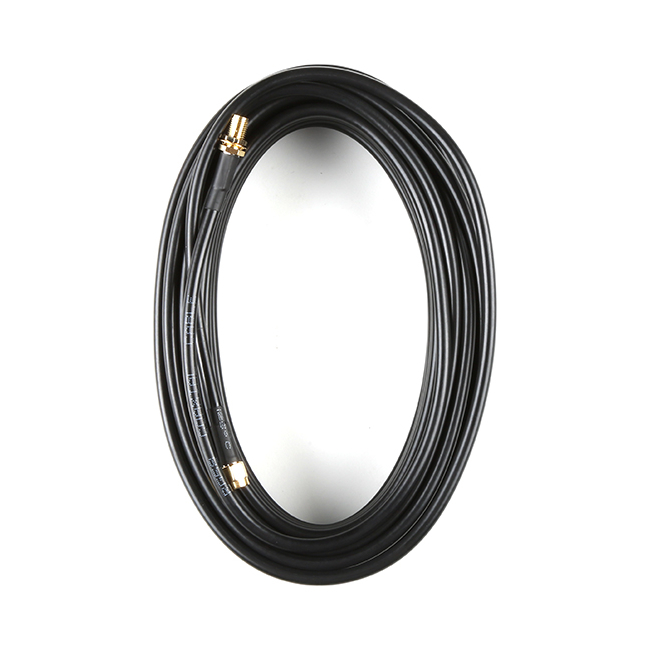

Interface Cable - SMA Female to SMA Male (10m, RG58)

When experimenting with GPS or RF it can be very handy to have the antenna on the top of your house or outside with a clear view of the sky while you stay in doors and warm at your keyboard. This 10m (33') SMA extension does a great job of connecting your receiver or radio to a distant antenna with as little RF loss as possible.

While slightly more stiff, RG58 has the benefit over RG174 and others in that it has lower loss per meter: 0.71dB/m vs 1.44 dB/m. If you're transmitting and want as much power delivered to the antenna, or if you have a roof mounted GNSS antenna, this cable provides a better, lower loss solution than smaller diameter cables.

Documents:

• Mechanical Drawing
