Luxonis - OAK-1 W

1. Product Documentation
2. CE Certificate

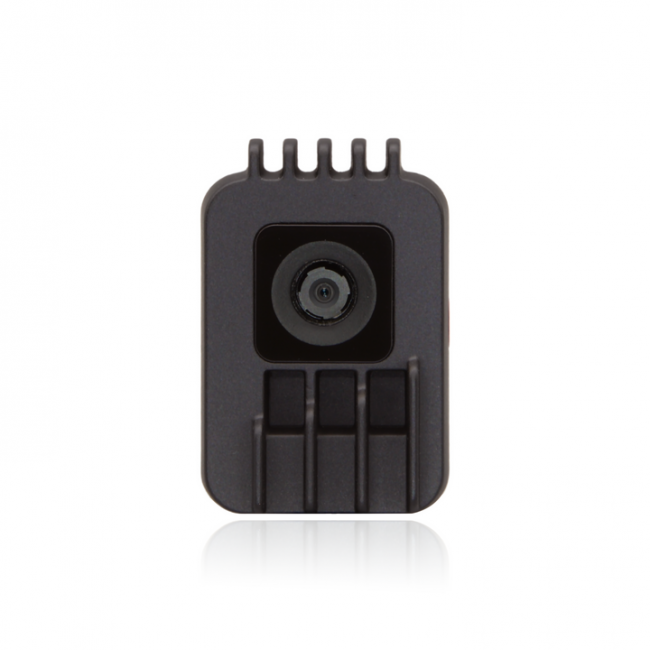

The OAK-1 W is an 12MP AI camera that features on-device Neural Network inferencing and Computer Vision capabilities. It can capture high-resolution images, run custom AI models, and perform advanced computer vision tasks. It uses USB-C for both power and USB3 connectivity.

Wide FOV allows you to capture more area in one shot, which can be especially useful for:

• Multi-camera setup, to reduce the number of cameras needed to cover the whole area
• AMRs, to cover larger area and to get more features for localization and 3D mapping - see VIO/SLAM documentation for more information
• Object tracking/counting, for example vehicle or people counting over a larger area

Main Features:

• 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
• Run any AI model, even custom architectured/built ones (models need to be converted)
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• Object tracking: 2D tracking with ObjectTracker node
• Dimension: 36x54.5x27.8 mm
• Weight: 53.1g

• Package includes
