Luxonis - OAK-D

1. Product Documentation
2. CE Certificate

Awards:

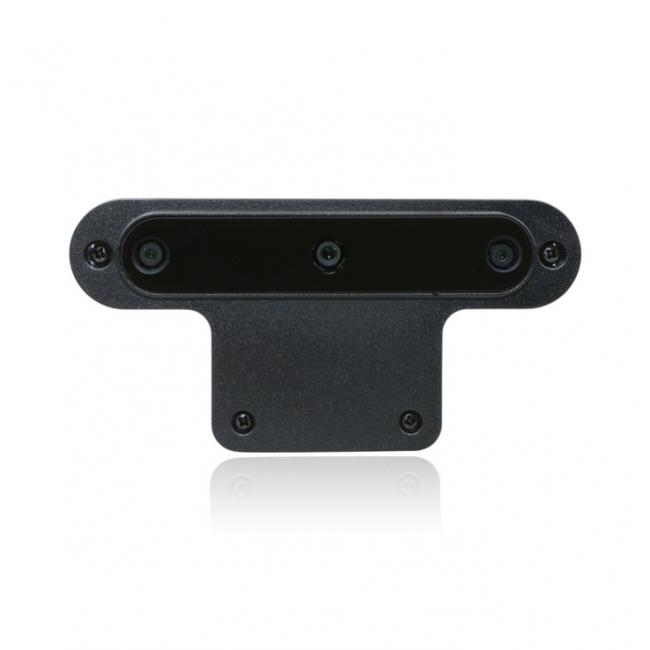

OAK-D is the ultimate camera for robotic vision that perceives the world like a human by combining stereo depth camera and high-resolution color camera with an on-device Neural Network inferencing and Computer Vision capabilities. It uses USB-C for both power and USB3 connectivity.

• 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
• Run any AI model, even custom architectured/built ones (models need to be converted)
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
• BNO086 IMU single chip 9 axis sensor with embedded sensor fusion
• Object tracking: 2D and 3D tracking with ObjectTracker node
• Dimension: 110x54.5x33 mm
• Weight: 115g

Package includes
