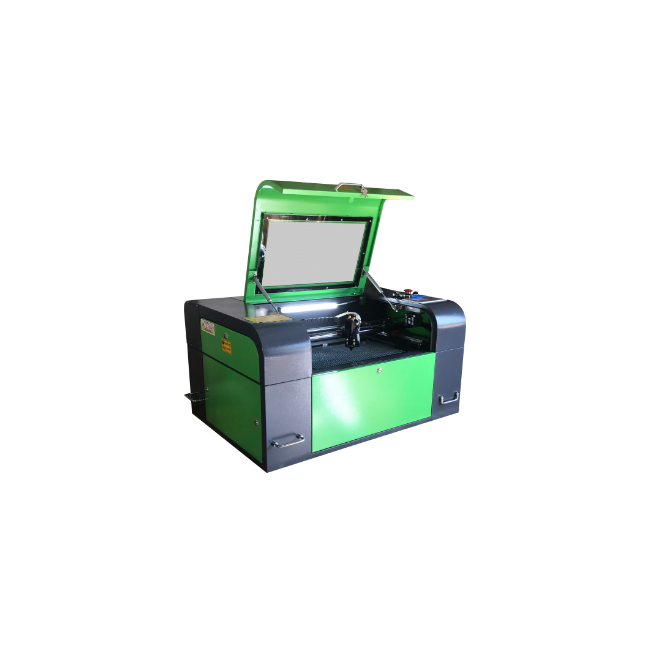

Mantech - Lasertech Desktop Laser CO2
Small But
Powerful Desktop Laser Cutter
Perfectly sized for any small work-shop or craft area. Lasertech Desktop Laser Engraver may be small but it sure packs a punch. Small yet powerful, has all the tools you need to make your business a success. All this whilst also meeting stringent safety checks and standards. The Lasertech Desktop is great for laser projects up to 500 x 300 mm
SKU
MNT-Desktop
Desktop Laser Cutting & Engraving Machines
Perfect for small spaces and workshops that need a laser with a manageable footprint.
Lasertech desktop laser cutter range may be small but they pack a big punch. From crafters, artisan product makers, sign makers, hobbyists to schools, colleges and universities. Lasertech products are used in a huge range of sectors and applications.
Applications:
Fast, affordable, reliable. With advances in our own research and development our Lasertech range has become a class leading CO2 laser cutting & engraving system.
What's Included:
Desktop Laser Cutter Engraver
All of Lasertech Desktop Laser machines come with these standard features:
CO2 Laser - Material Suitability Guide
See below for a quick guide showing you what can be processed with Laser Cutting & Engraving machines This list is not exhaustive however, there is an abundance of materials that can also be processed. Always check with your supplier if these materials are suitable for laser processing – materials such as *PVC can give off hydrochloric acid and toxic fumes, It is not advisable to try to process this or similar materials.
MATERIAL |
LASER ENGRAVE |
LASER CUT |
| Natural Wood | ✓ |
✓ |
| Acrylic | ✓ |
✓ |
| Glass | ✓ |
✗ |
| Engraving Laminate | ✓ |
✓ |
| Bamboo | ✓ |
✓ |
| MDF | ✓ |
✓ |
| Leather | ✓ |
✓ |
| Cloth | ✓ |
✓ |
| Marble | ✓ |
✗ |
| Matte Boards | ✓ |
✓ |
| Stone | ✓ |
✗ |
| Paper | ✓ |
✓ |
| Mylar | ✓ |
✓ |
| Press Board | ✓ |
✓ |
| Rubber | ✓ |
✓ |
| Laser Plywood | ✓ |
✓ |
| Anodised/painted metal | ✓ |
✗ |
| Other plastics* | ✓ |
✓ |
| Ceramic | ✓ |
✗ |
Weight & Dimensions
| Weight | ~ 80Kg |
| Length | 1330mm (with tube) |
| Height | 490mm |
| Depth | 700mm |
Standard Features & Equipment
| Bed Size | 300 x 500 mm honeycomb bed |
| Laser Tube | BOW water DC cooled laser tube |
| Air Assist | Removes debris, cools material, protects the focus lens. |
| Industrial Water Chiller | CW 3000 included |
| Extraction | Fume extraction - fan and hosing included, vent to atmosphere type. Fume 'Filtration' (self contained unit is an optional extra) |
| Safety Accessories | Laser safety eye-wear included. Proximity & interlock cabinet protection as standard. |
| Interface & Software | Windows USB connection, cable or memory stick (WI-Fl optional). NEW Lightburn CAD/CAM software included (Mac OS Compatible). |
| Delivery | UK mainland included (offloading and siting of the machine is the end users responsibility; we will however advise all our customers should they need assistance with this). |
| Installation | Our professional installation team will set up your new machine to the highest of standards. Please note you must have the correct electrical outputs installed pre installation (customer responsibility) -We will advise you on what is required. |
| Training | You will receive full training on the machine and it's safe operation including best practices and general software use. |
| Warranty | *12 months standard parts and labour warranty (6 months on the laser tube) with extended warranty periods available. |
