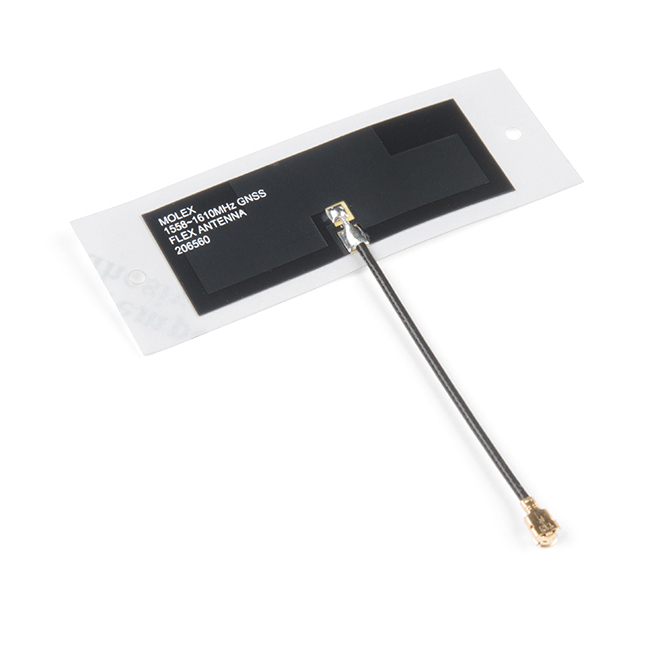

Molex Flexible GNSS Antenna - U.FL (Adhesive)

The Molex GNSS Flex antenna is a great option for basic GNSS applications and will work with any of our GNSS boards equipped with a U.FL at a fraction of the cost of many of its big brothers. This antenna supports GPS Galileo BeiDou and GLONASS in three different frequency bands (1561 +/-3MHz 1575 +/-3MHz 1602 +/-3MHz). The Molex Flexible GNSS Antenna has an incredibly small footprint at 40.40mm x 15.40mm while the adhesive pad is a bit bigger at 56.40mm x 20mm. Even better the antenna is only 0.1mm thick (or about the thickness of a piece of paper). Simply remove the backing and stick this to any surface or leave the backing on (just be careful of the fragile U.FL connector).
