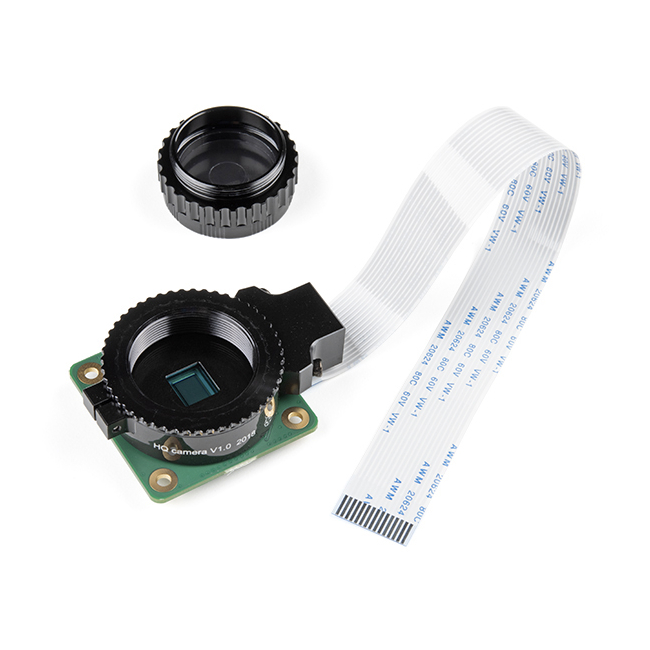

Raspberry Pi HQ Camera Module

The High Quality Camera Module is a camera sensor designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses for use with the Raspberry Pi single board computer line. It offers higher resolution (12 megapixels, compared to eight megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2. The 12.3 megapixel Sony IMX477 sensor features a 7.9mm diagonal image size and back-illuminated sensor architecture with adjustable back focus. Additionally, this module features an included tripod thread just adjacent to the ribbon cable connector.

The CGL 6mm CS-mount and 16 mm C-mount lenses (in the related products section below) are examples of third-party products that are compatible with the High Quality Camera; see step-by-step instructions for fitting these CS-mount and C-mount lenses in the documents tab. Additional adapters can also be found for use with professional DSLR lenses.

Note: A lens is required for this camera module and one is not included.

Includes:

• Module assembly w/ 1/4'-20 tripod mount
• C-CS adapter
• Dust cap
• Ribbon cable (200mm) - a longer cable may be needed depending on the mounting technique used.

Features:

• Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9mm sensor diagonal, 1.55μm × 1.55μm pixel size
• Ouput: RAW12/10/8, COMP8
• Back focus: Adjustable (12.5mm – 22.4mm)
• Lens standards: C-mount, CS-mount (C-CS adapter included)
• IR cut filter: Integrated
• Ribbon cable length: 200mm
• Tripod mount: 1/4in. - 20

Documents:

• Getting Started Guide
• Product Brief
• Mechanical Drawing
• Example Fitting Instructions: C-mount lens
• Example Fitting Instructions: CS-mount lens
• Raspberry Pi Resource Page
