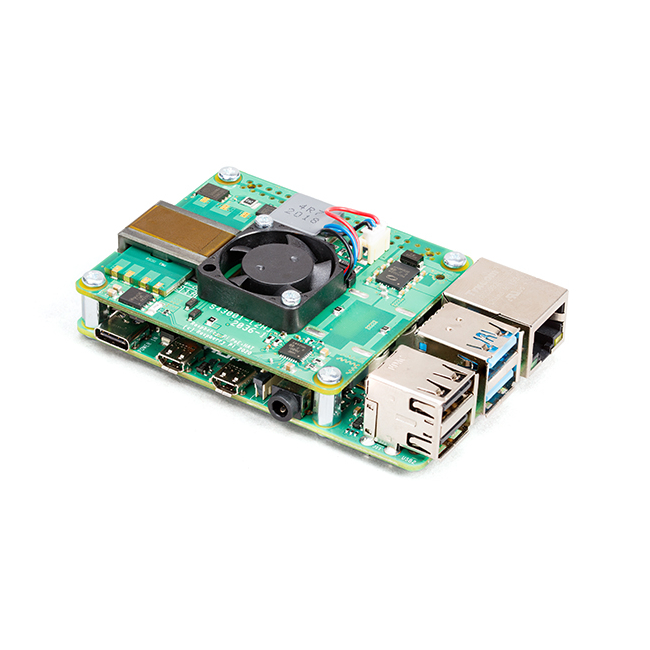

Raspberry Pi PoE+ HAT

The Raspberry Pi PoE+ HAT is designed to replace the existing Raspberry Pi PoE HAT in all new and existing designs. Like the original, the PoE+ HAT allows you to power your Raspberry Pi using Power over Ethernet networks. The PoE+ HAT meets all the requirements of the IEEE 802.3af (802.3at Type 1, PoE+) specifications. This ups the power the network can supply from 15.4 watts (PoE) to 25.5 Watts (PoE+) over CAT5 cable.

No modification to the main Raspberry Pi board is needed for the PoE+ HAT to work but you will need to ensure that your Pi’s software is up to date for all functionality to be available. The Raspberry Pi PoE+ HAT is fitted with a small fan that is controlled by the Raspberry Pi via I²C and will turn on and off automatically depending on the temperature of the main processor on your Pi.

Note: There is no Raspberry Pi included with this product. Your desired Pi will need to be purchased separately.

Features:

• Input voltage: 37-57V DC, Class 2 device
• Output power: 5V DC/3.0A
• Cooling: 25mm x 25mm brushless fan delivering 2.2CFM for processor cooling
• Fully isolated switch-mode power supply
• Fan control
• Mechanically compatible with the existing Raspberry Pi PoE HAT

Documents:

• Product Brief
