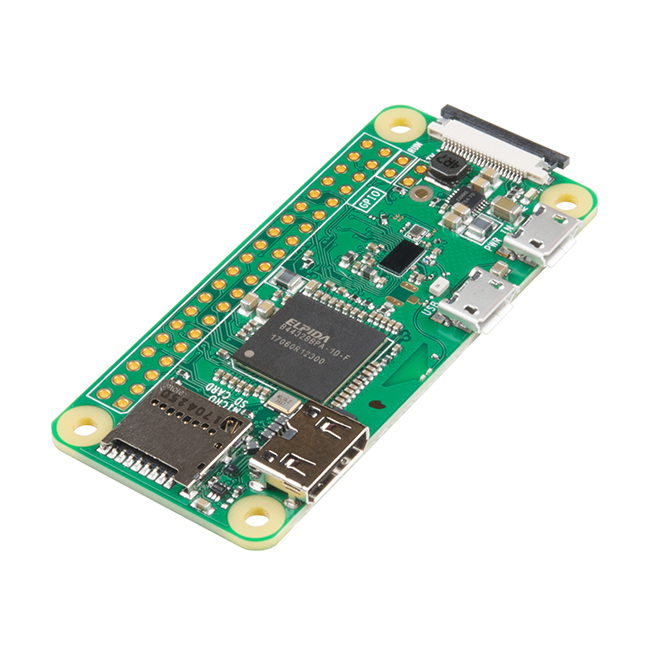

Raspberry Pi Zero W

The credit-card-sized computer has become even smaller! The Raspberry Pi Zero W is still the Pi you know and love, but at a largely reduced size of only 65mm long by 30mm wide and at a very economical price. With the addition of wireless LAN and Bluetooth, the Raspberry Pi Zero W is ideal for making embedded Internet of Things (IoT) projects. The Pi Zero W has been designed to be as flexible and compact as possible with mini connectors and an unpopulated 40-pin GPIO, allowing you to use only what your project requires.

At the heart of the Raspberry Pi Zero W is a 1GHz BCM2835 single-core processor with 512MB RAM. Quite frankly, this Pi is about four times faster that the original Raspberry Pi and is only a fraction of the cost of the current RPi3.

The setup for the Raspberry Pi Zero W is a little more complicated than on other Pis. Because of the small size, many of the connectors on the Pi Zero are not standard. For starters you will want a Mini HDMI to HDMI cable or adapter to connect to your monitor. You will also need a USB OTG cable to connect a USB device, as well as a unique CSI camera cable. No matter how you want to use your Raspberry Pi Zero W, you will need a microSD card with an operating system and a high-quality 5V power supply to power your board.

Note: As of the release of the Raspberry Pi Zero W the NOOBS image will need to be updated to work on Pi Zero boards. You can download the image here.

Features:

• 802.11 b/g/n wireless LAN
• Bluetooth^(R) 4.1
• Bluetooth Low Energy (BLE)
• 1GHz, single-core CPU
• 512MB RAM
• Mini HDMI and USB On-The-Go ports
• Micro USB power
• HAT-compatible 40-pin header pins
• Composite video and reset headers
• CSI camera connector

Documents:

• Getting Started Guide
• Graphical Datasheet
• NOOBS Download
• Raspberry Pi Foundation
• Raspberry Pi Resource Page
