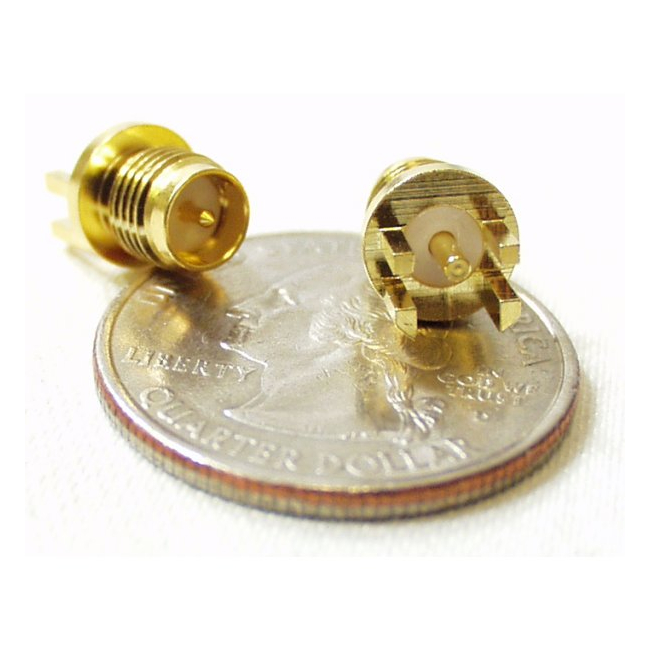

Reverse Polarized SMA Connector

PCB edge mount RP-SMA RF connector. Perfect for prototyping with our RF ICs. This is a standard edge connector. The thickness between pins is 0.063" so that it can slide sideways onto a standard 1.6mm PCB. See the mechanical drawing to create your footprint. Supported Antennae: Any antenna that follows the reverse polarized SMA convention. These are the most common 2.4GHz antennas you'll find. Be sure to check out the SMA connector tutorial here for more information on SMA connectors.
