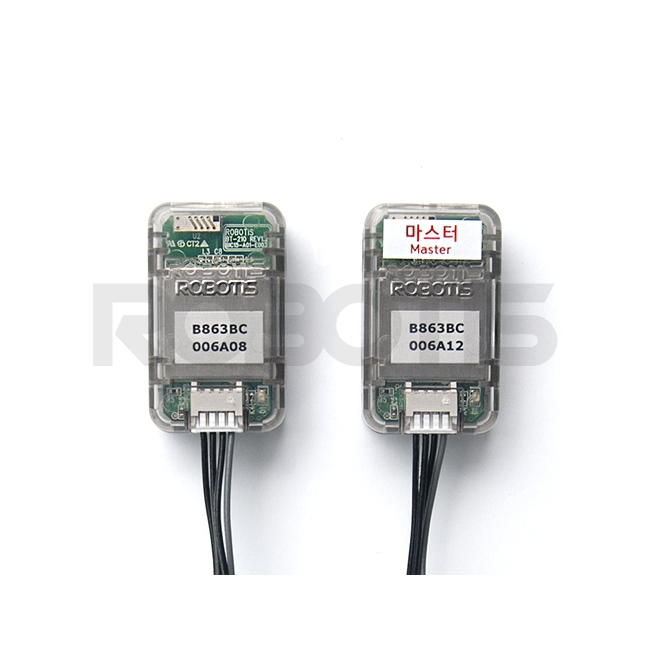

ROBOTIS BT-210 Set
£73.40
£61.17
The BT-210 is a product that uses Bluetooth communication to enable serial
communication(UART).
SKU
R-902-0122-000
FEATURES
The BT-210 is a product that uses Bluetooth communication to enable serial communication(UART).
The BT-210 covers the circuit with a case to protect it, and it uses a connector-type cable to install on a robot and RC-100B. You can control your robot without any problems even when the infrared control condition is not optimal such as in a robot competition.
The SLAVE module can be used when controlling the robot from a device that supports Bluetooth communication such as a smartphone, tablet PC or notebook.
CAUTION
The MASTER module and the SLAVE module are divided – MASTER module for the transmitter; SLAVE module for the robot. When first released and purchased, the two modules are paired so there is no need for a separate ID setting procedure. If either of the components is lost, you will have to purchase the BT-210 (Product code 902-0076-000) for pairing.
Directions for pairing can be found in our E-manual. Click to refer to directions for pairing.
The initial Pin Code when released from factory is 0000. Use this when connecting to the Bluetooth device(SLAVE). When a change is needed, please refer to the link above. However, OpenCM-9.04 or A C-type controller is required.
INCLUDED COMPONENTS
| Wireless Communication Module | BT-210 (120mm cable included) | QTY: 2 |
SPECIFICATIONS
| Weight | 4.51g |
| Dimensions | 18mm x 30mm x 9.1mm |
| Bluetooth Specification | Bluetooth Specification 2.1 Support |
| Effective Communication Distance | 10 M(Class 2) |
| Frequency Range | 2.4 GHz ISM Band |
| Bandwidth | MAX 250kbps |
| Basic Transmission Speed | 57600bps |
| Sensitivity | -81dBm (Typical) |
| Transmit Power | 4dBm(Typical) |
| Bluetooth Profile Support | SPP (Serial Port Profile) |
| Working Voltage | 3.3V |
| Electric Current Used | 48mA (Max) |
| Working Temperature | -40℃ ~ 85℃ |
| Transmission Speed | 1,200bps – 400,000bps |
| Antenna | Chip Antenna |
| Interface | UART (3.3V Level) |
INSTALLATION TO PRODUCTS
Controller : CM-100A, CM-530 -> Wireless control, wireless download possible
CM-510, CM-700, CM-900 -> Wireless control possible (firmware update required)
Remote Control : RC-100B (Please refer to comparison table below)
CAUTION
Installation not supported
-Remote Control : RC-100, RC-100A
- Controller : CM-100, CM-5, CM-2+
